G E N E S I S
What is it ?
Genesis is a modular electronics platform built around eight AX22 ports. It is designed to let you build real devices, fast. It combines plug-and-play modules with a reusable baseboard, giving you access to sensors, outputs, and communication protocols like I²C, SPI, UART, ADC, and GPIO — all without messy breadboards or proprietary lock-in.
GENESIS ESP32-S3

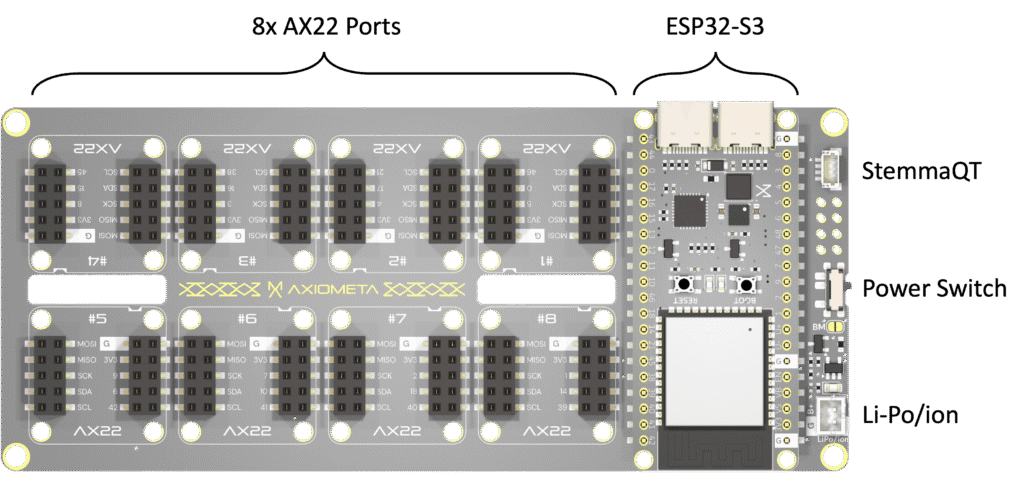

Genesis ESP32-S3 is the flagship development board in the Axiometa ecosystem — designed to host up to 8 AX22 modules for building electronics projects. With features such as:
- A removable ESP32-S3 (Wi-Fi, Bluetooth, USB-OTG)
- Support for SPI, I²C, UART, GPIO, and ADC on every port
- LiPo battery charging and power switch for portable projects
- StemmaQT/Qwiic breakout for external I²C modules
- Fully open-source hardware, ready for Arduino, MicroPython, or ESP-IDF
What's AX22
AX22 is an open-source 22×22mm port format designed for simple, reliable hardware reuse.

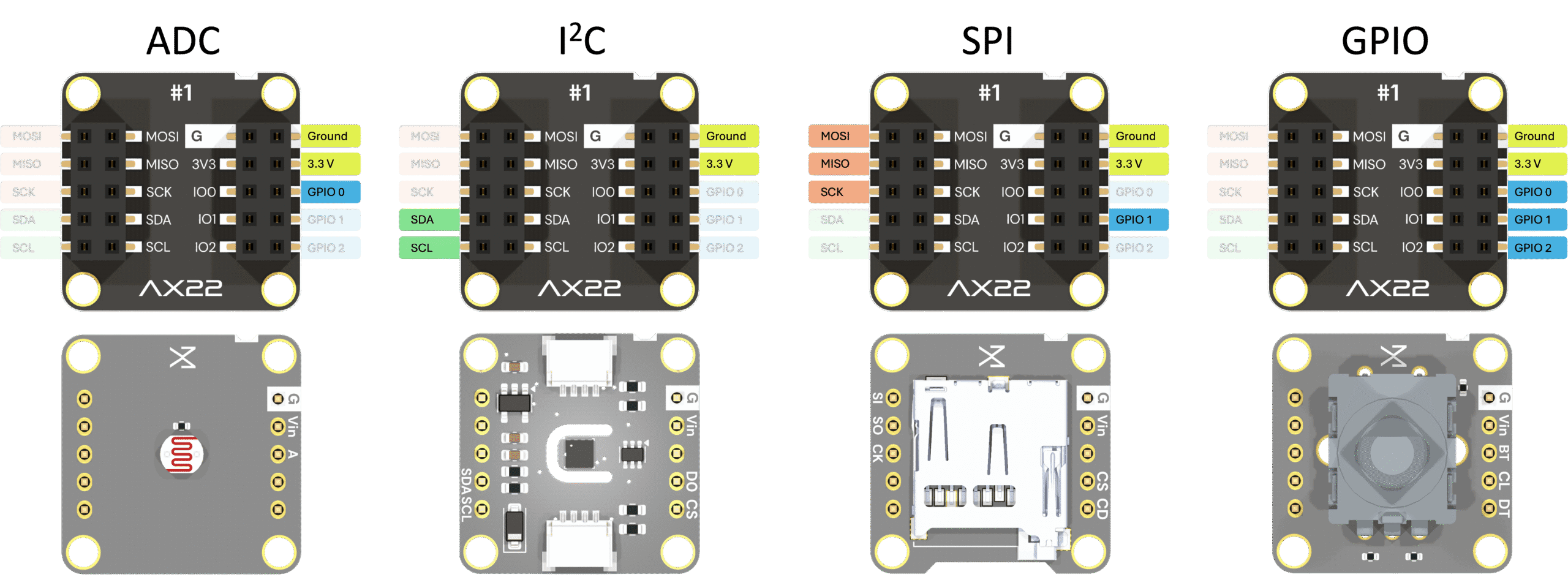

Each module uses a consistent 10-pin layout supporting I²C, SPI, UART, GPIO, and analog — so it can plug into any compatible dev board, whether it’s based on ESP32, Pico, or ATmega.
Instead of rebuilding the same circuits again and again, AX22 lets you reuse the same parts across multiple projects, microcontrollers, and platforms — making it ideal for fast development, real learning, and clean modular design.

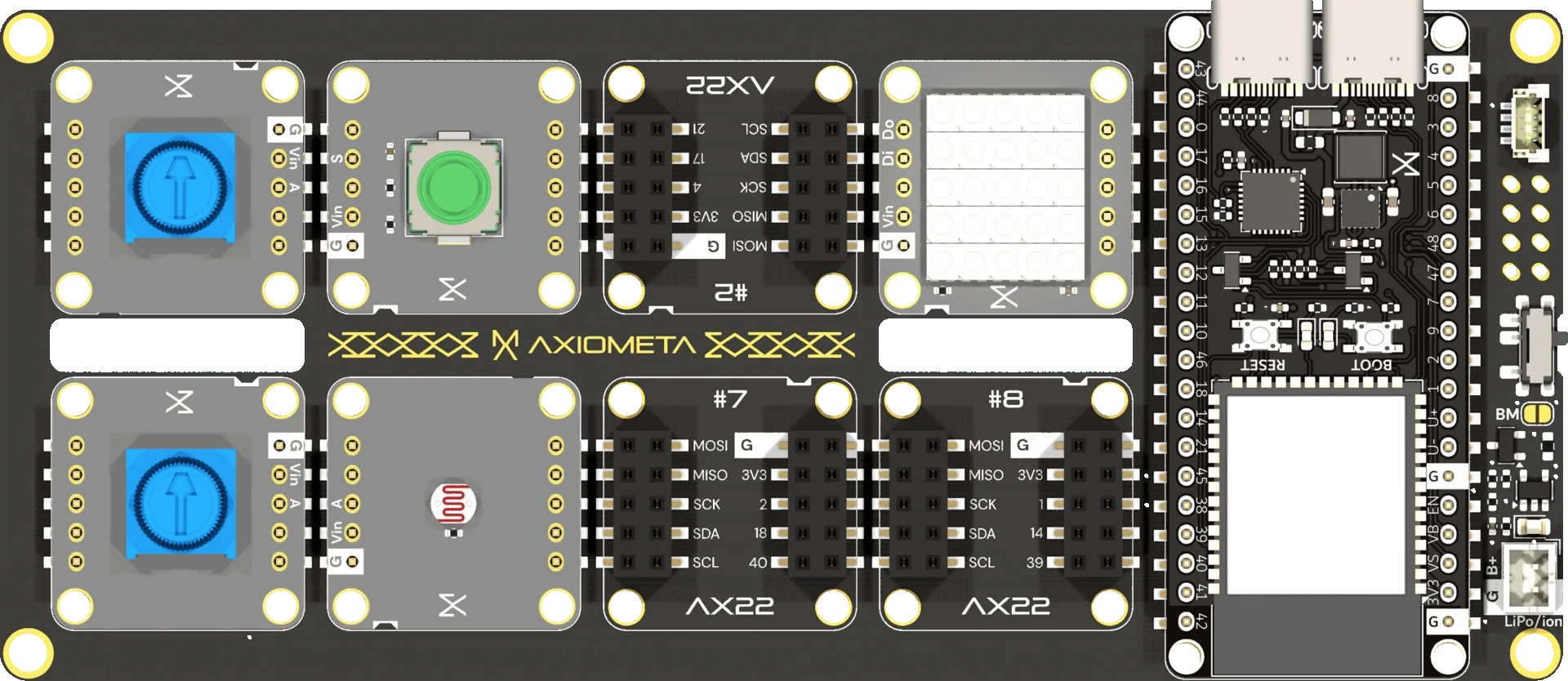

AX22 Module
AX22 modules are plug-and-play building blocks designed to work seamlessly with AX22 ports. Each 22×22mm module contains a specific function — like a sensor, motor driver, or display — and connects directly to any port without extra wiring or setup (apart from software coding).
The AX22 port automatically routes power and signals (I²C, SPI, UART, ADC, or GPIO) to the module, so you can focus on building, not debugging. Modules are reusable, compact, and compatible across different boards and microcontrollers — perfect for learning, experimenting, and creating real devices.

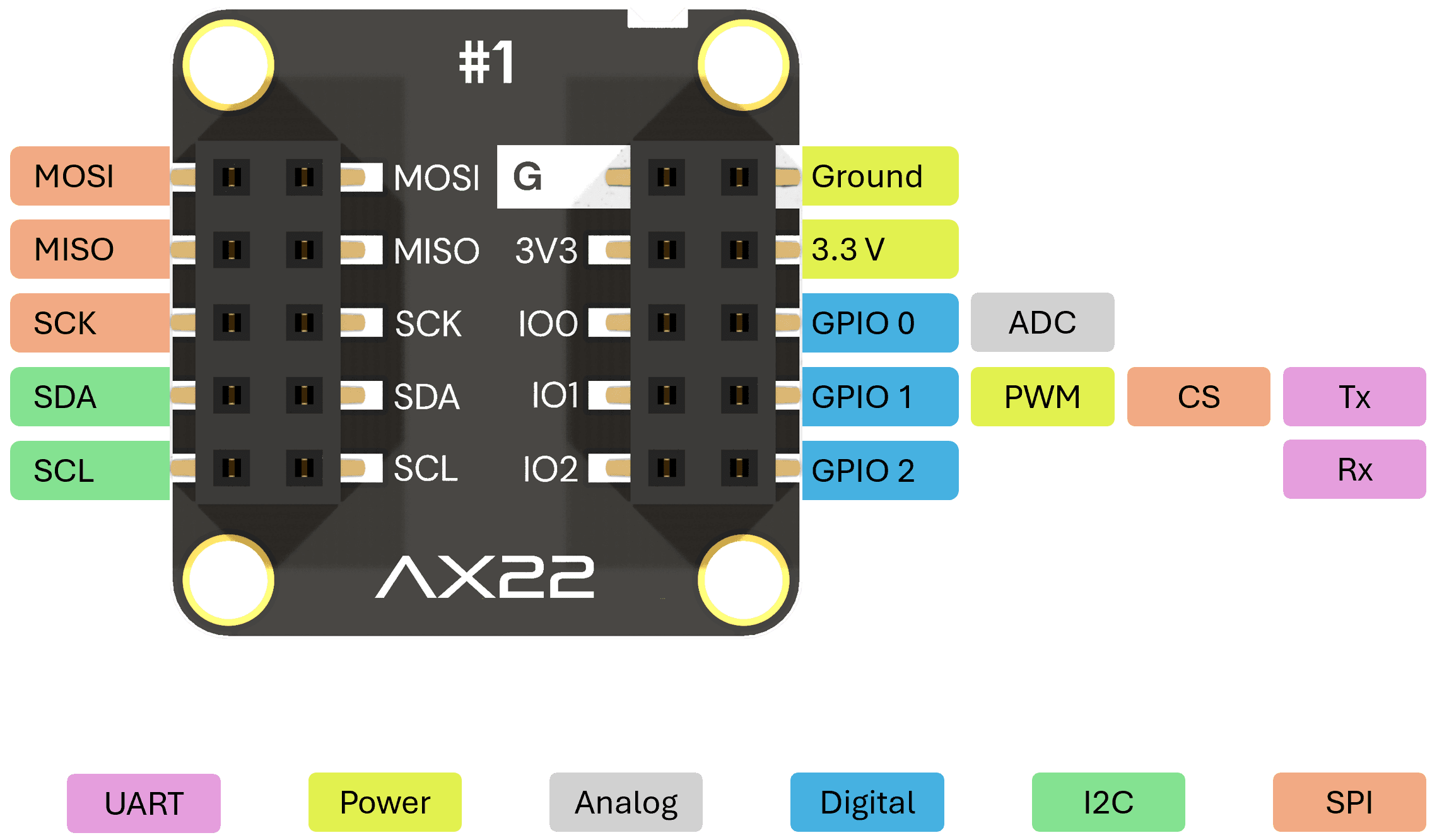

AX22 Port
Sensor count is growing every week!

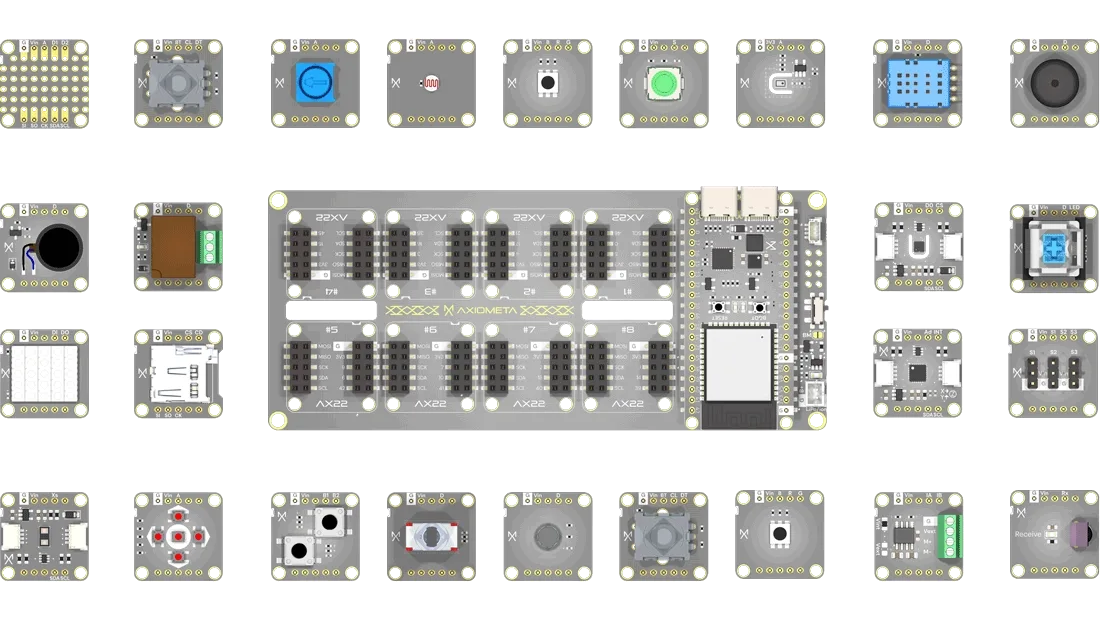

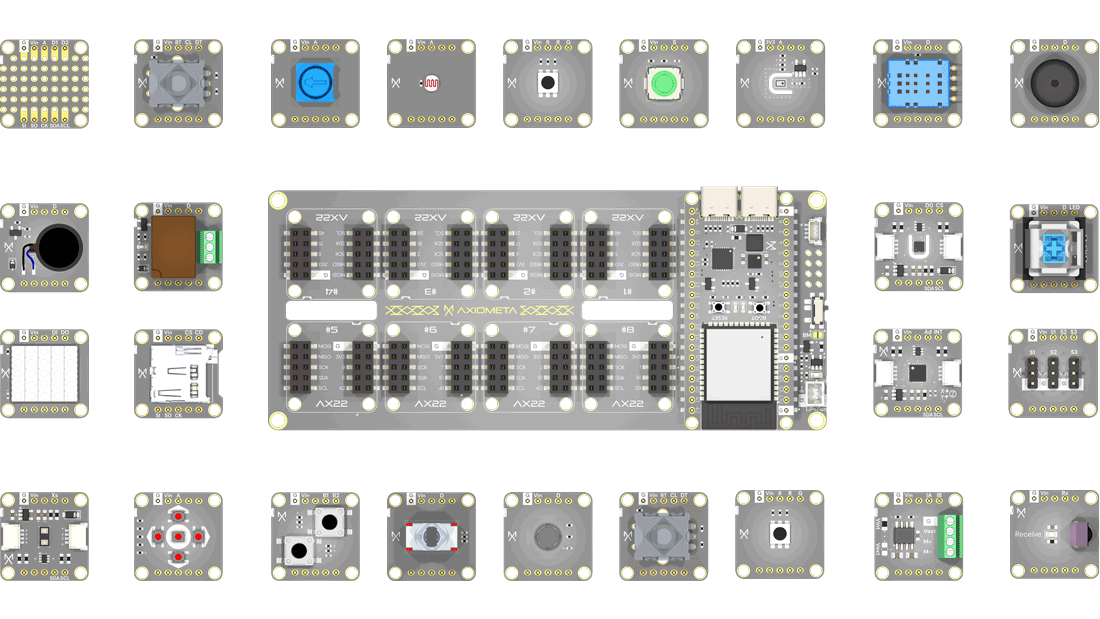

Current Modules
Sensor count is growing every week!

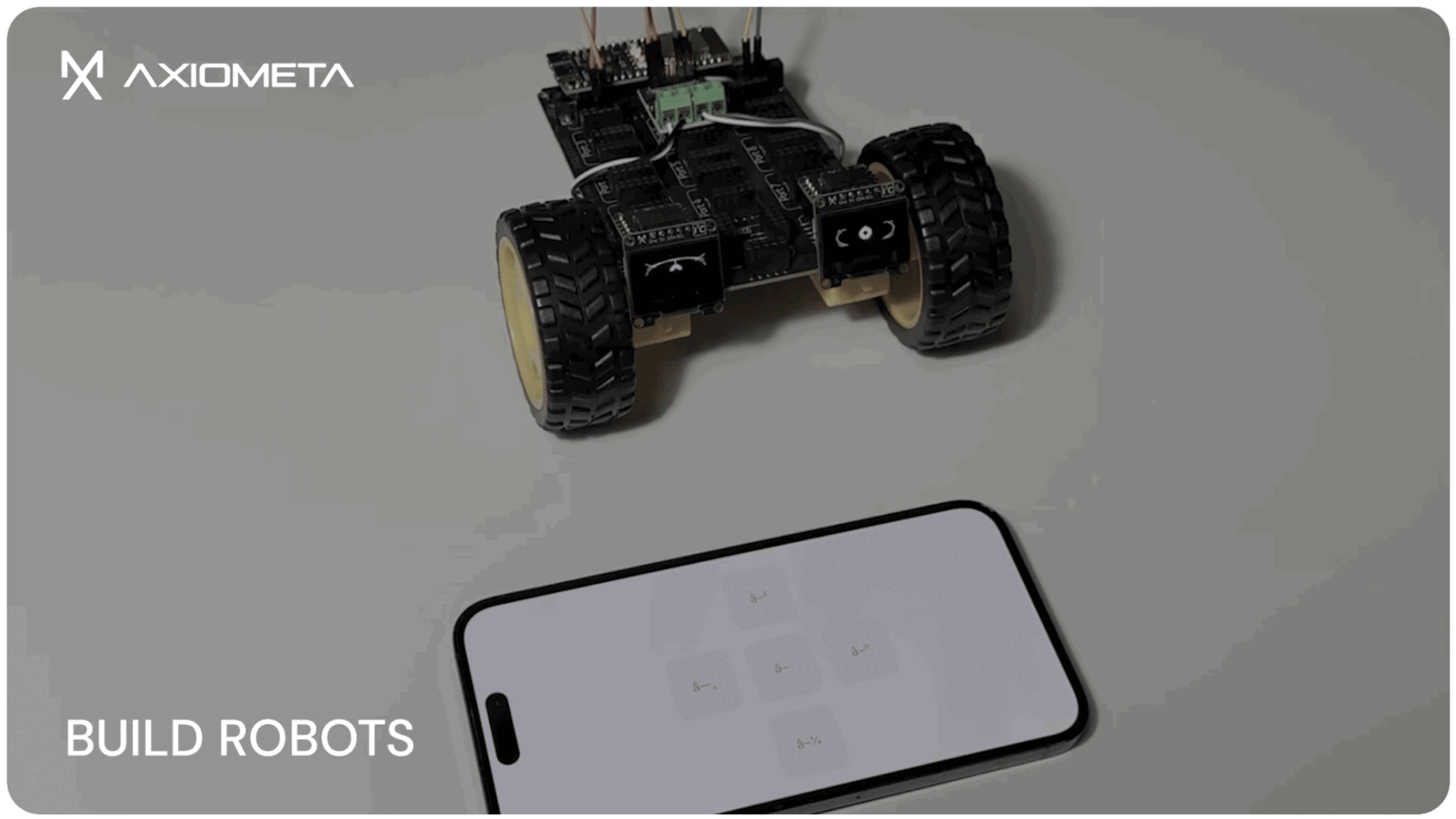

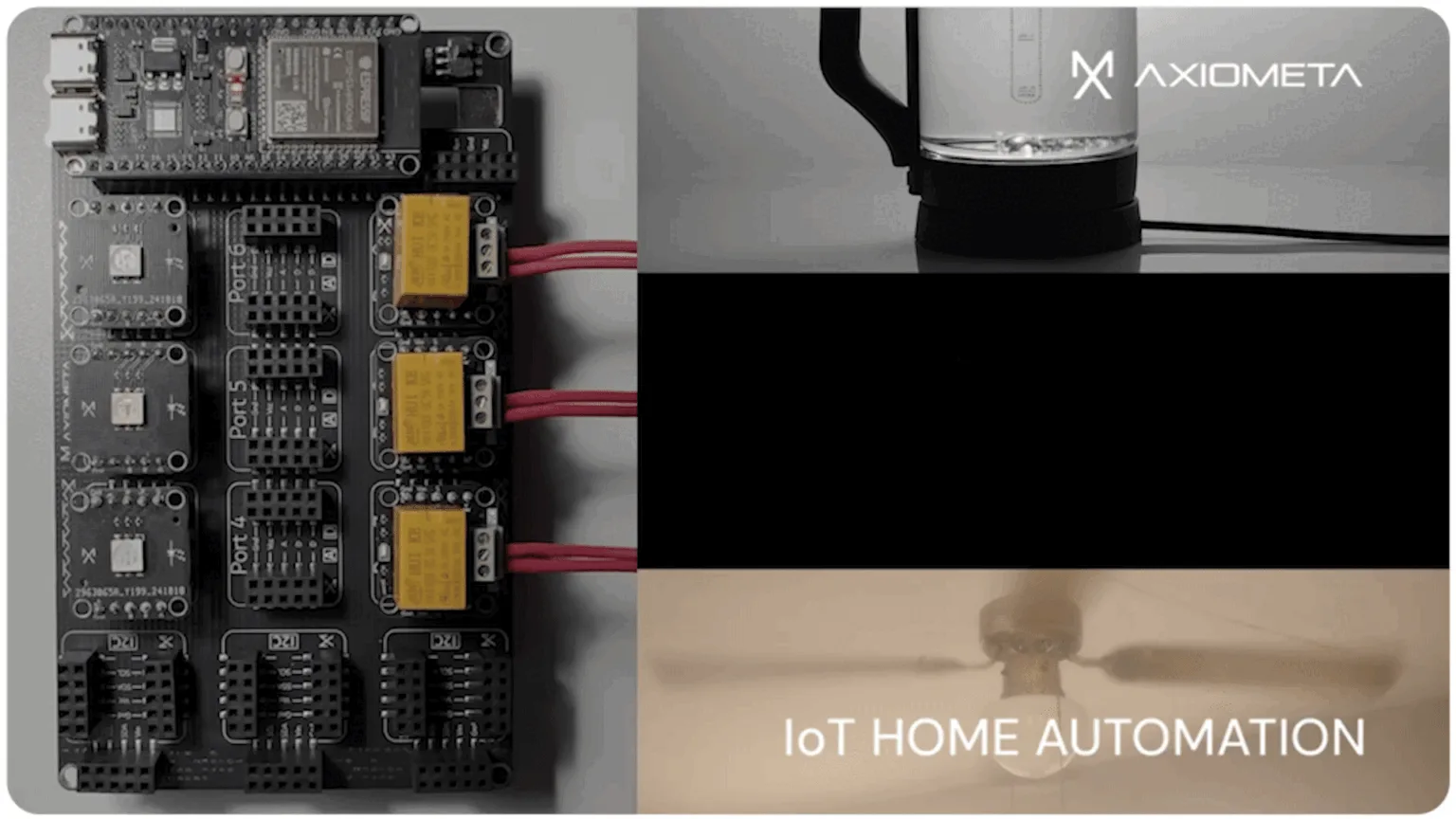

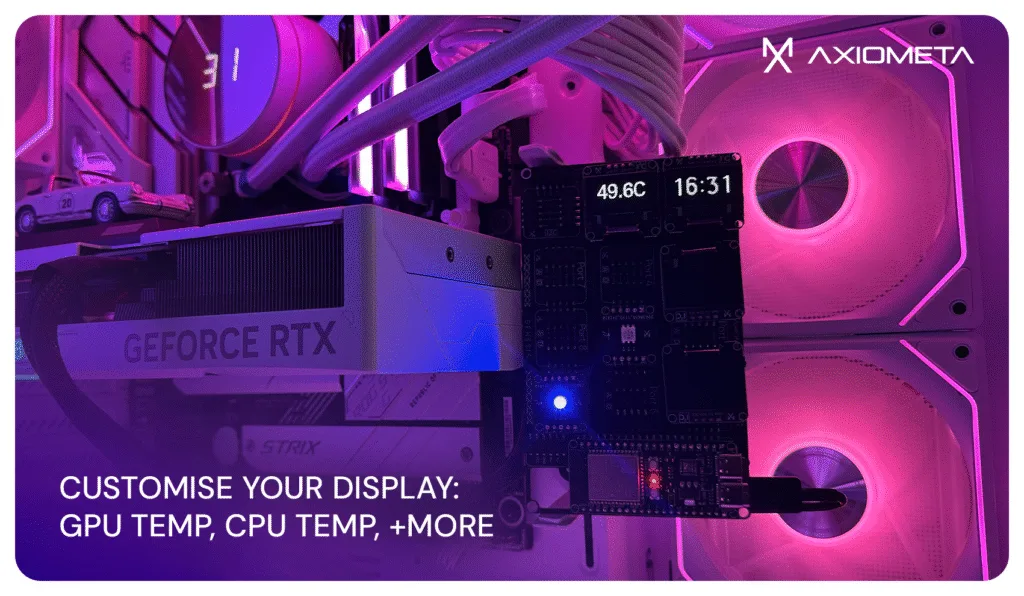

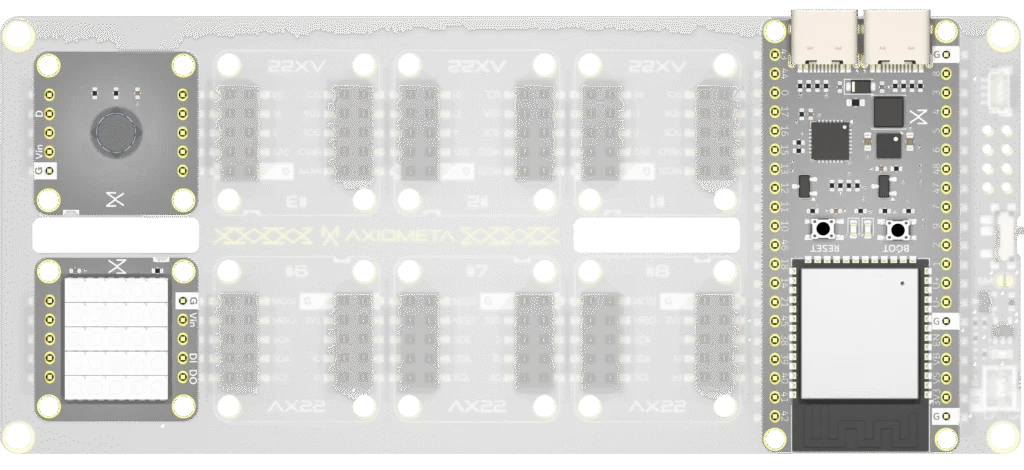

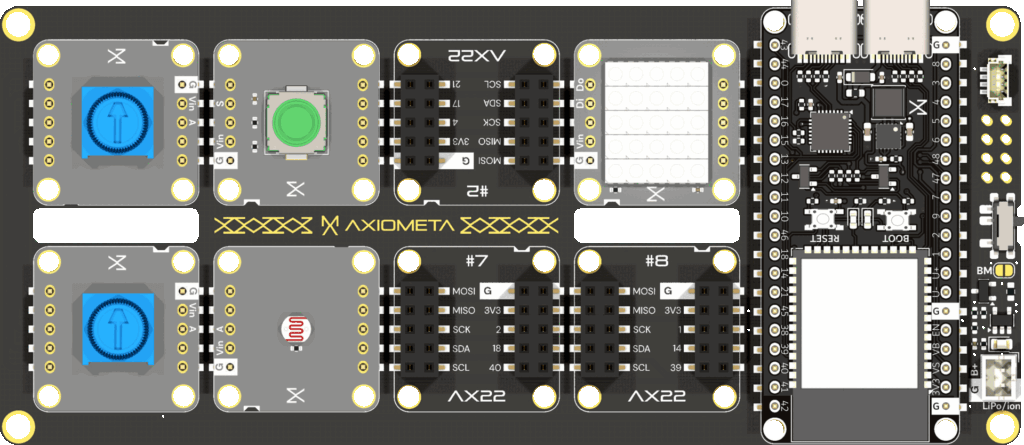

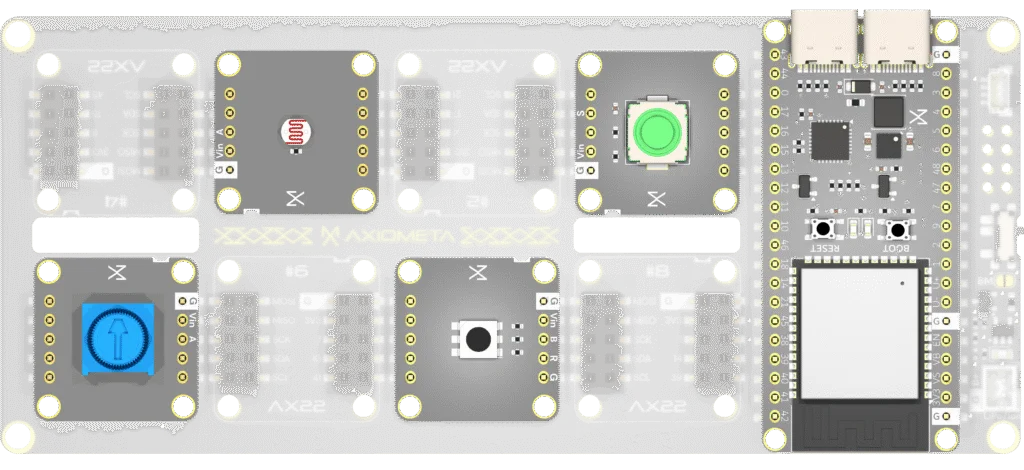

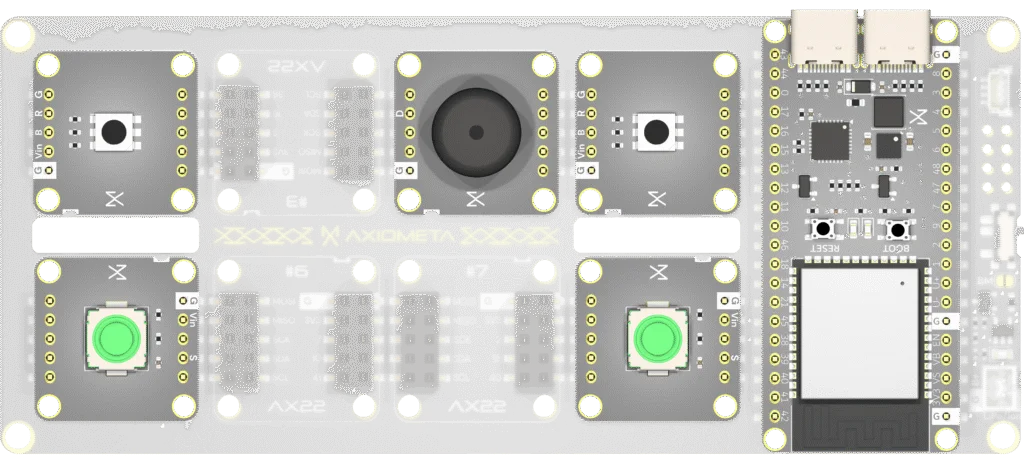

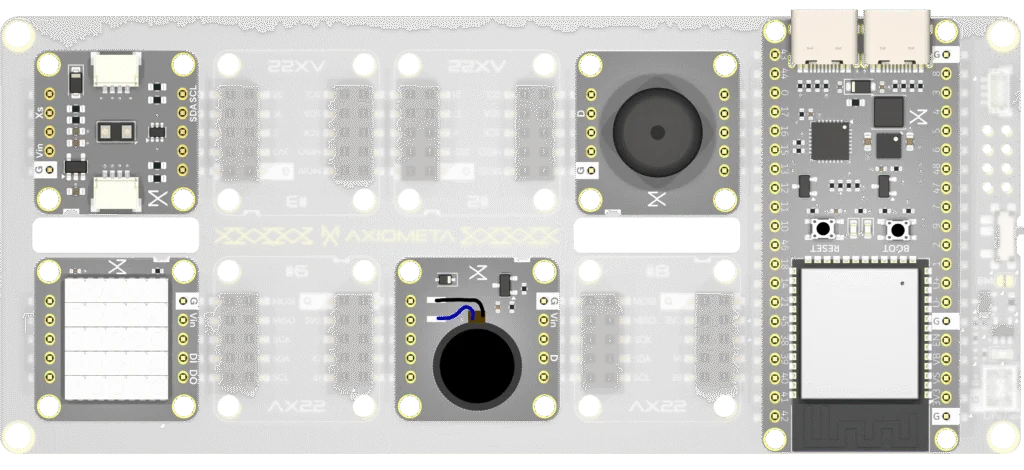

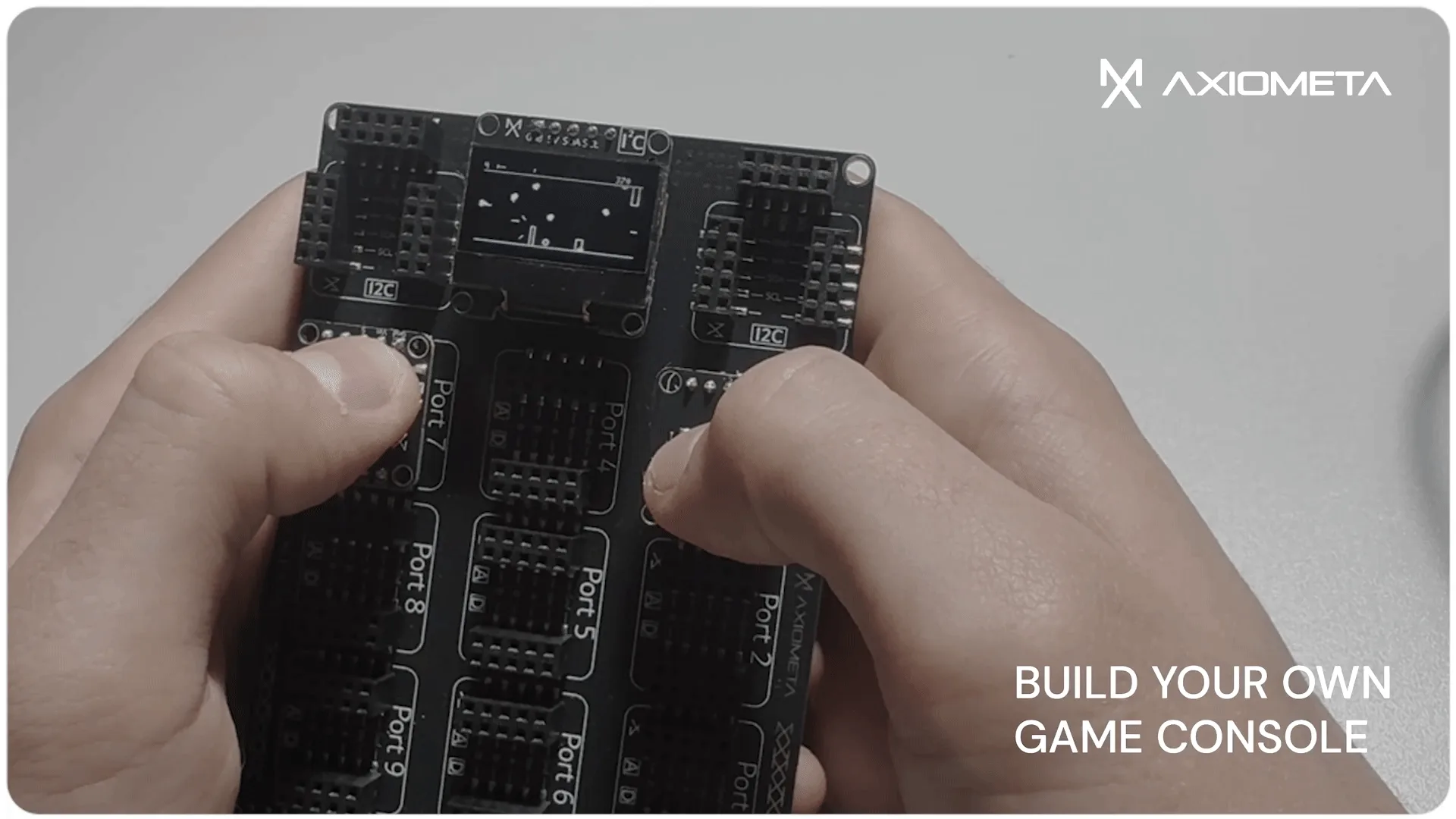

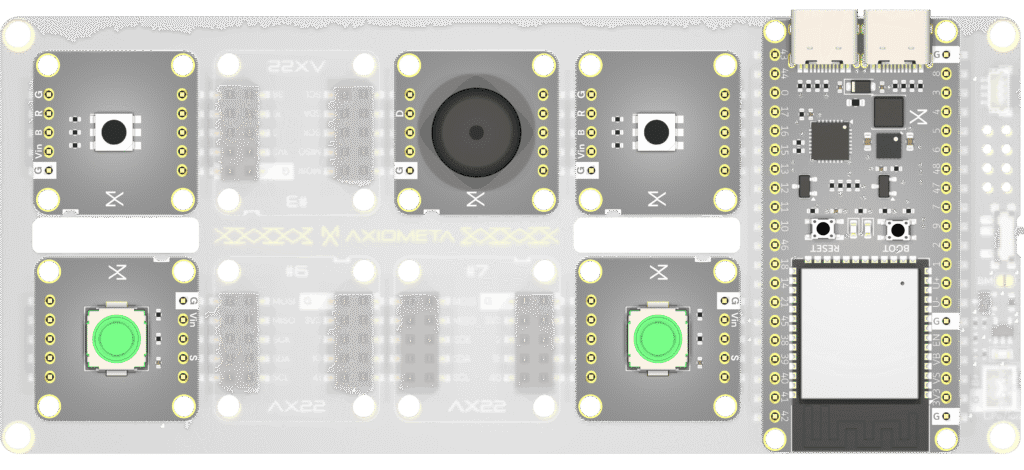

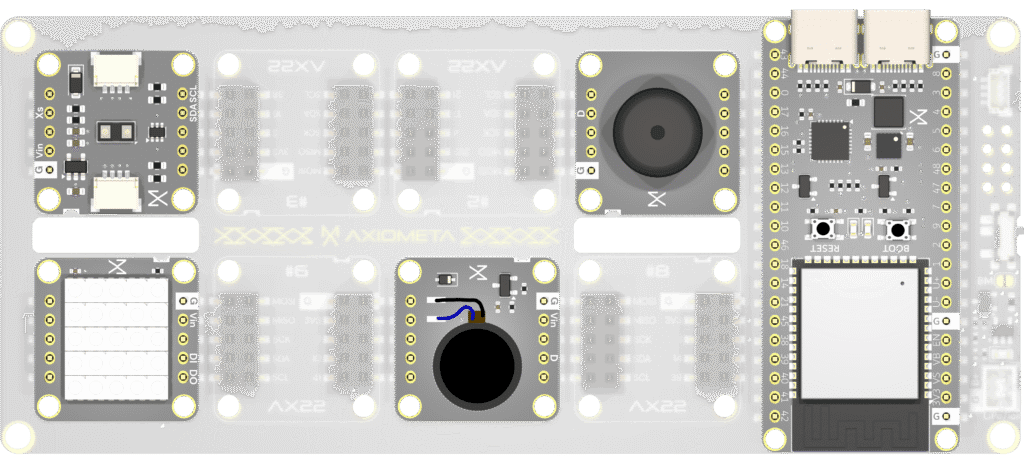

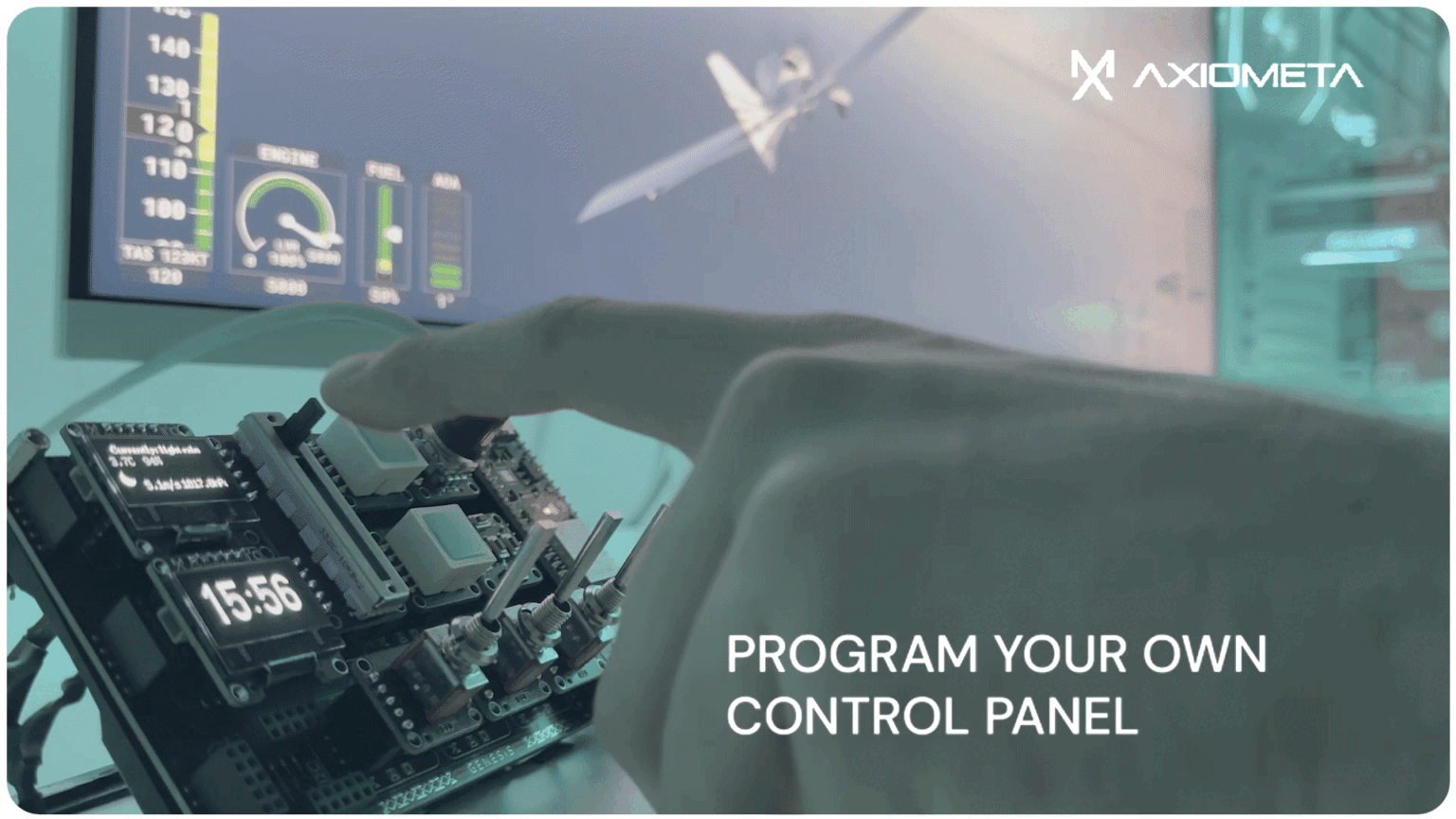

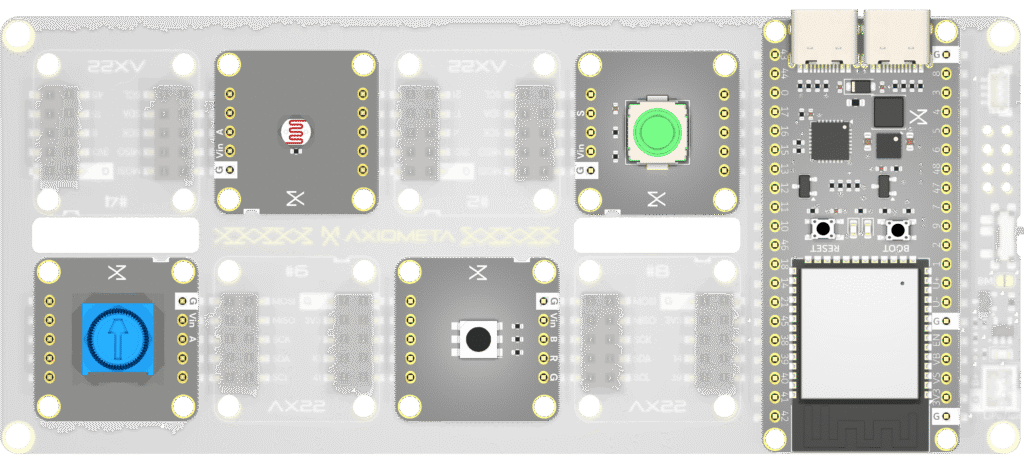

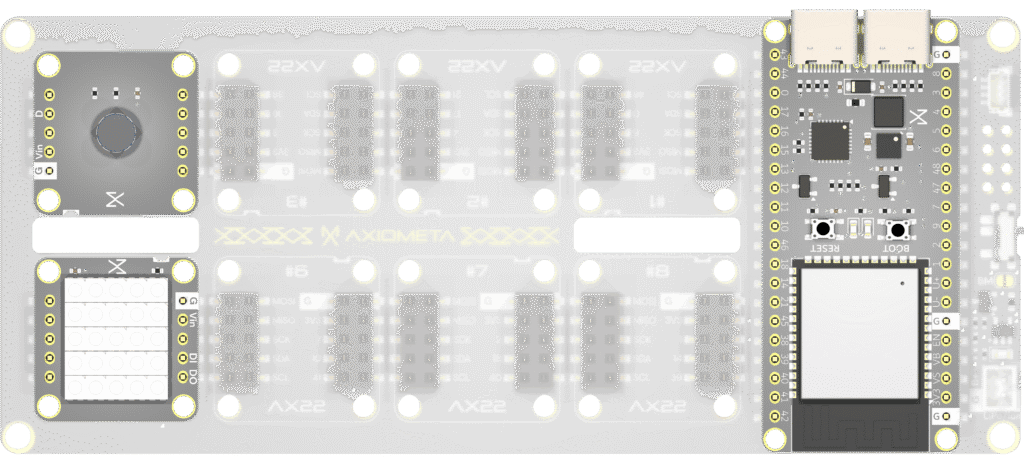

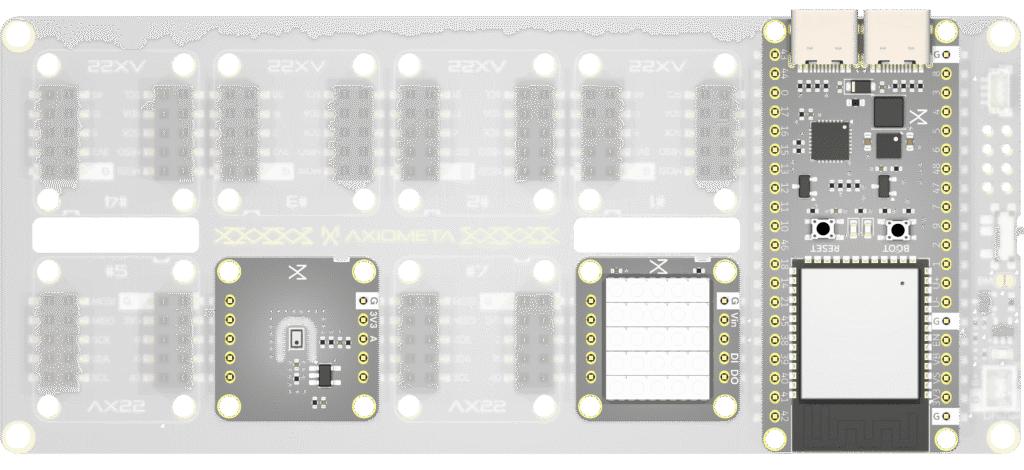

Project Examples

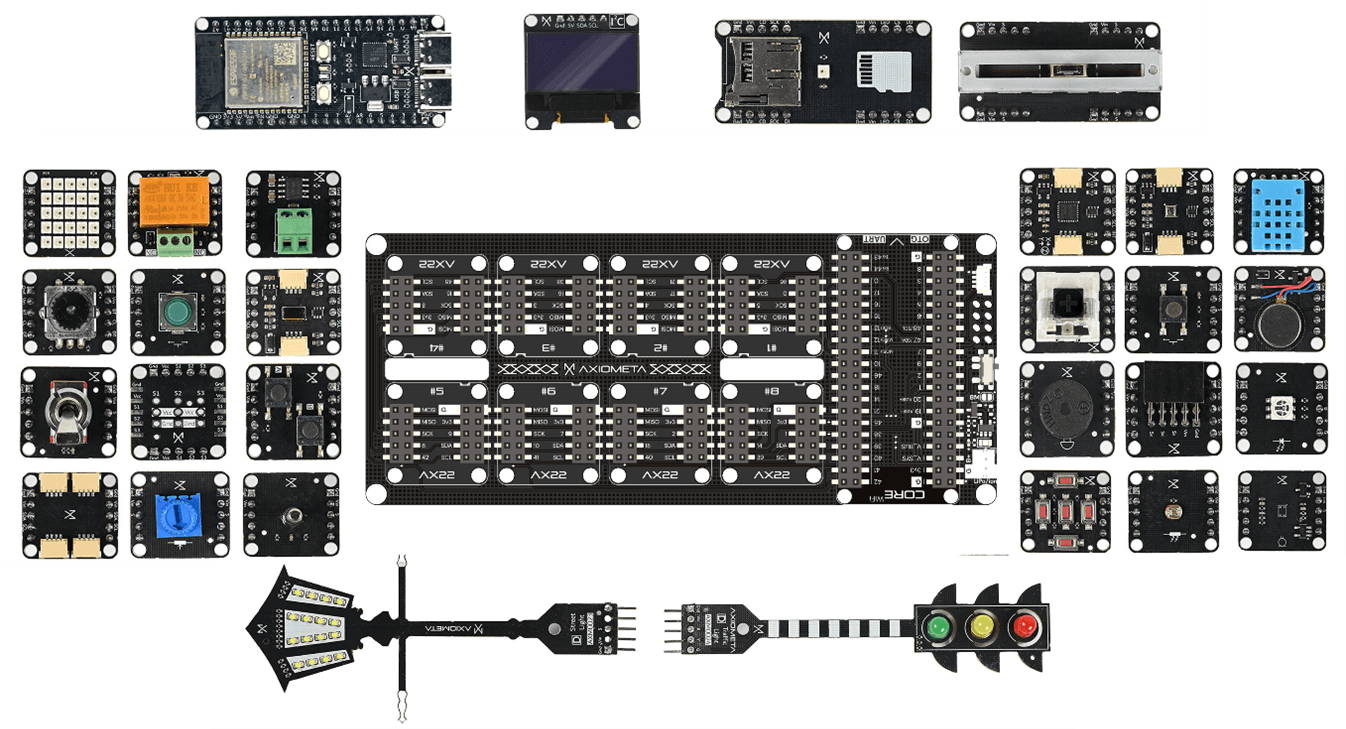

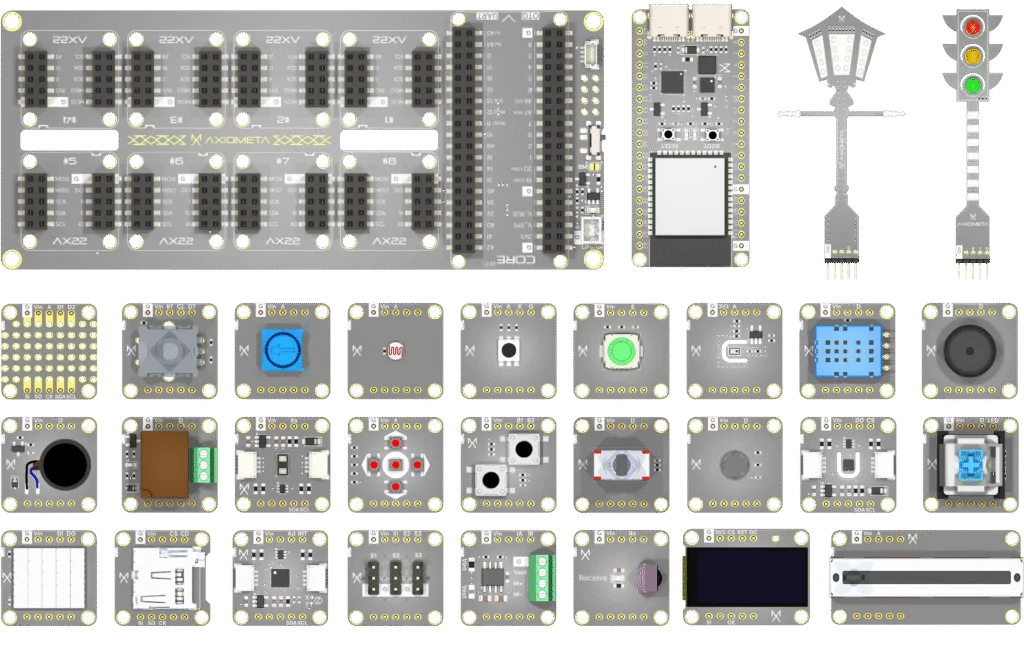

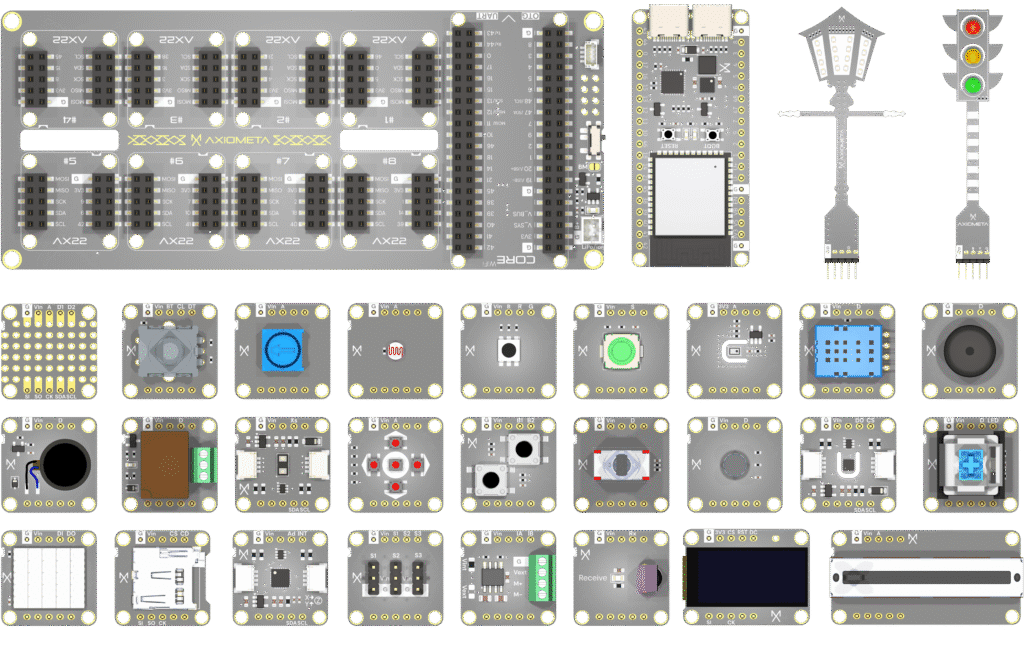

What's in the kit ?
Third Party Compatibility
STEM
Genesis is where hands-on STEM learning begins. It’s a modular electronics platform that lets students and makers build real, functional devices — not just demos. With plug-and-play AX22 modules, it replaces fragile breadboards and tangled wires with a clean, expandable system designed for classrooms, workshops, and self-guided exploration.
1. Build
Plug sensors and components into the reusable Axiometa Matrix
2. Upload
Start with example codes or write your own to customise functionality.
3. Test and Explore
Upload your code, bring your project to life, and keep experimenting.
