BrødBoost-PD

€16.99 ex. VAT

This breadboard-compatible USB Type-C adapter, is able to request 20V, 15, 12, 9V, 5V from compatible USB-PD power supplies. Comes with a power LED and a fault indication LED, in case of rejected requested voltage.

SKU: PRH0002

Available on backorder

Details

What's inside?

Discussion

Details

Overview

This USB Type-C breadboard adapter offers 20V, 15, 12, 9V, 5V from compatible USB-PD power supplies

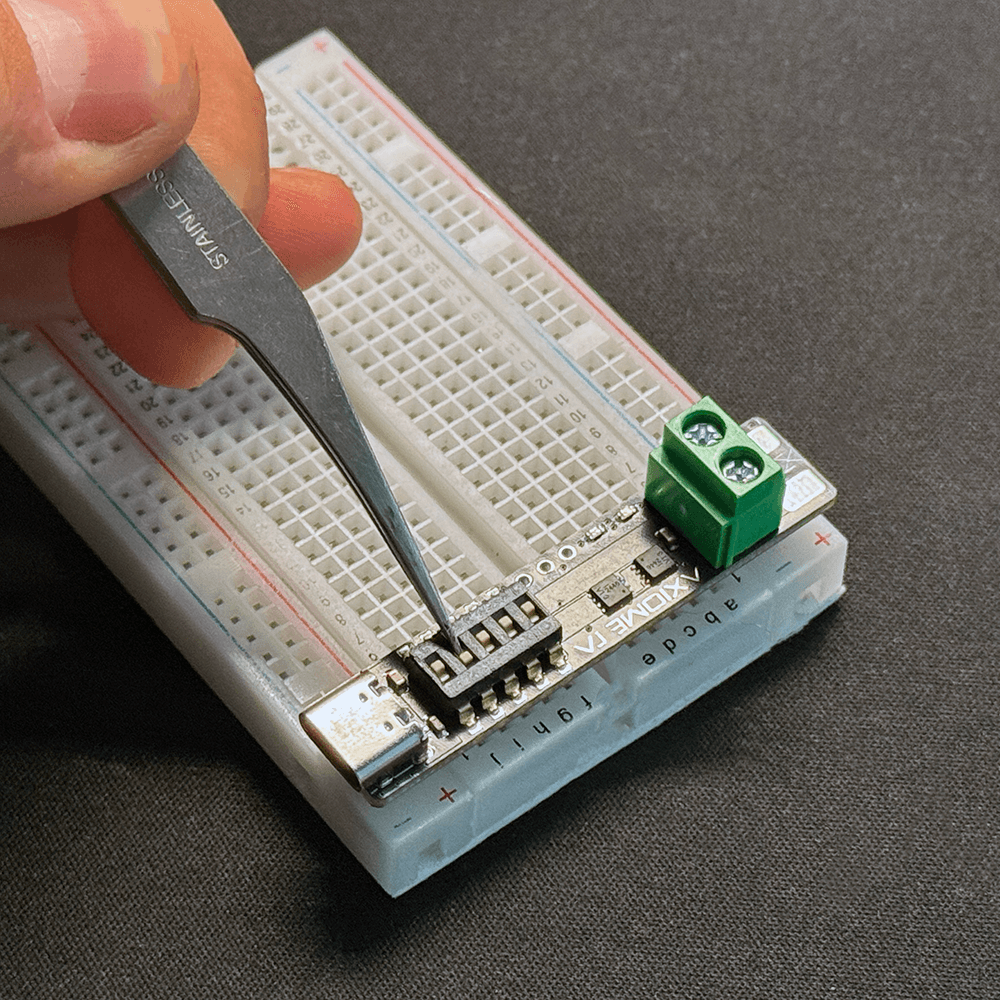

DIP Selection Switches
20 V
15 V
12 V
9 V
5 V

USB Type – C
Power LED
Fault LED
Screw Terminal Block
Solder Pads
USB Data Pins

Compatibility

Compatible with almost all BB400 & BB800 Solderless Breadboards

Header Gap: 42mm
Header Pitch: 2.54 mm

Interface

Simply insert BrodBoost-C to a breadboard and connect any USB-C cable, you can adjust each rail side individually with jumper-caps

Documentation

This part is fully open sourced with schematics and 3D files available bellow

PRH0002

GitHub Repository

For your convenience, a GitHub link is accessible bellow.

Connection Guide

Here you’ll find connection guide images to help you integrate the sensor with various development platforms.

Arduino Example Code

Code copied!


No coding is required for this part.

To see it working open serial monitor

MAC: CMD+Shift+M

Windows: CTRL+Shift+M
