Axiometa Core WiFi
€19.99 ex. VAT

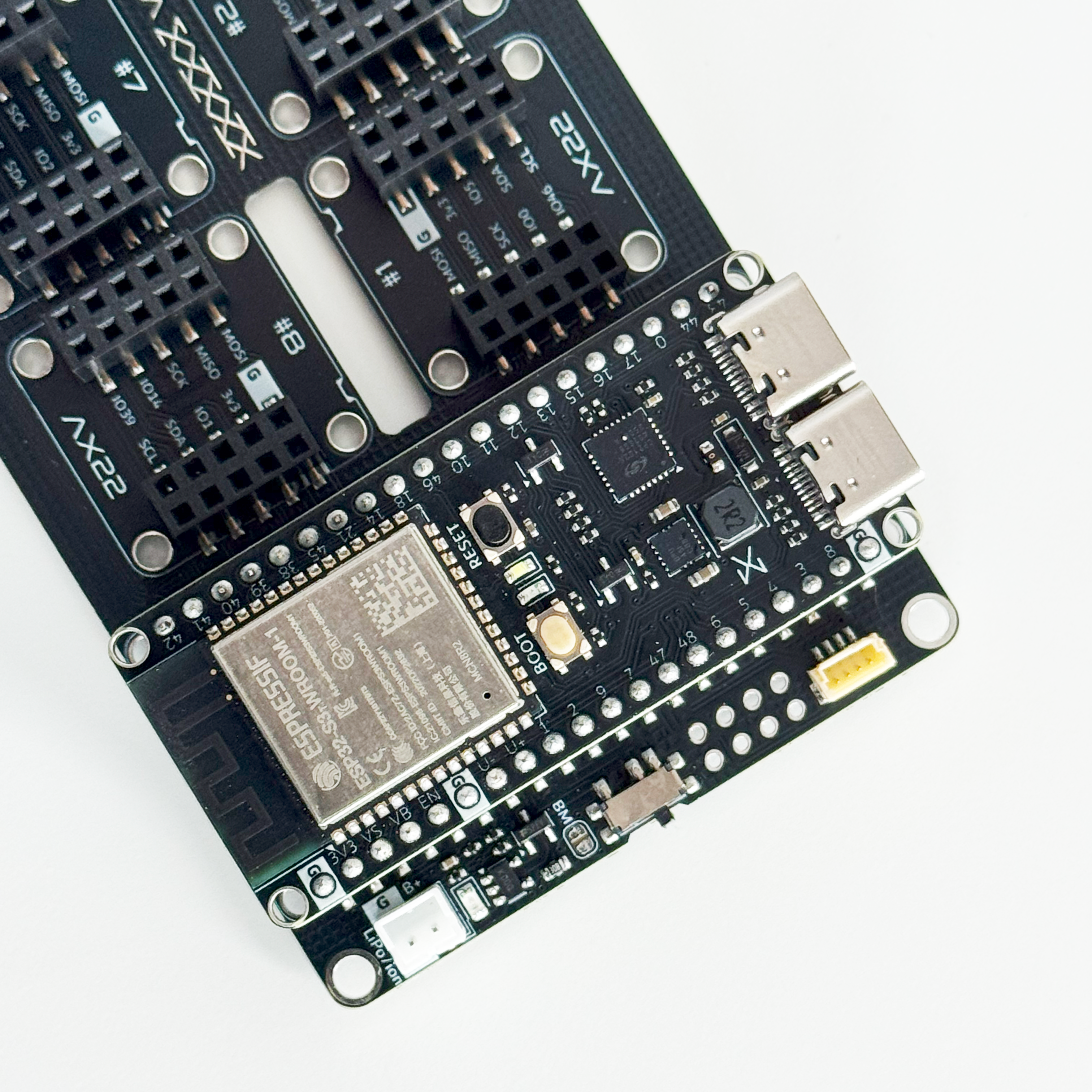

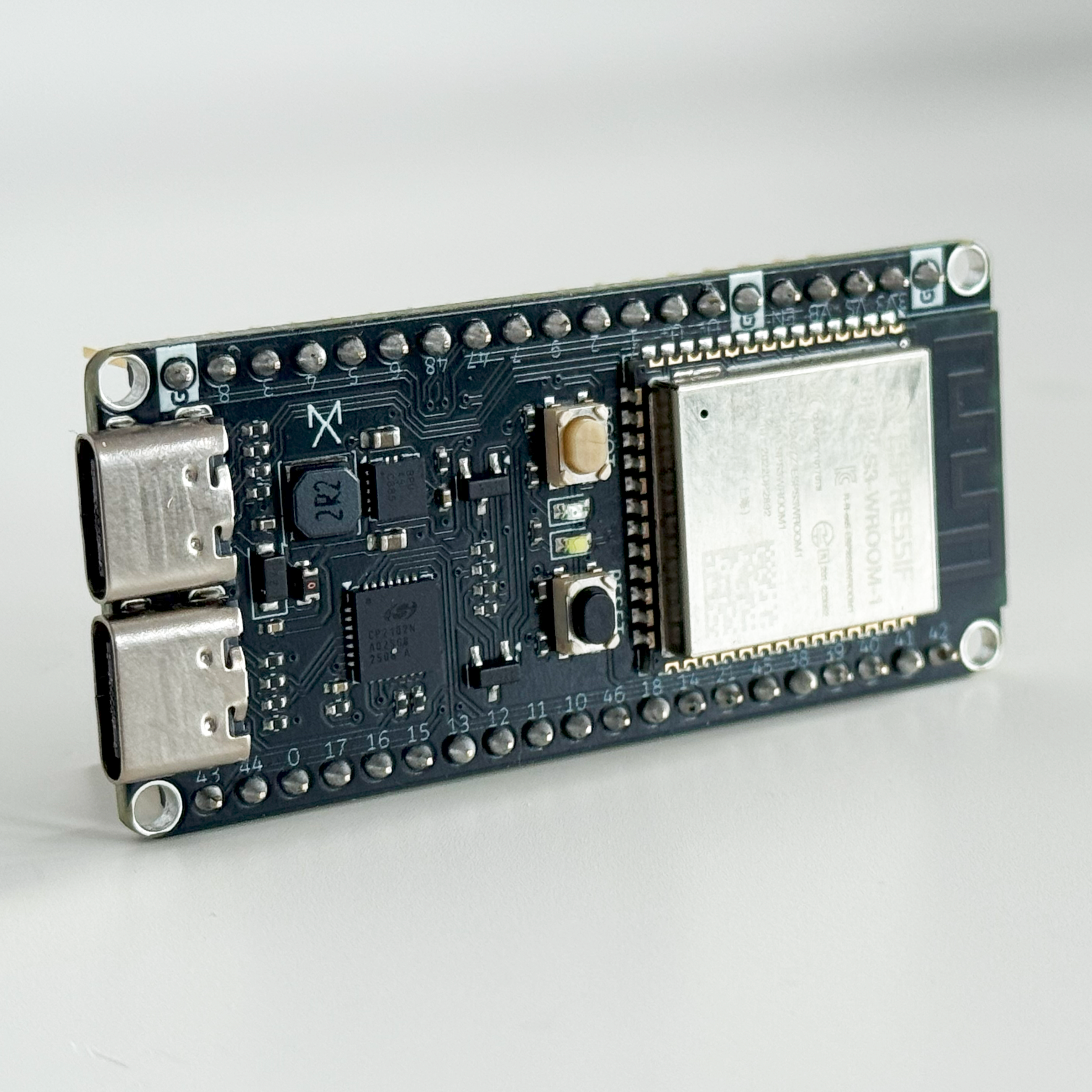

The Axiometa Core WiFi is a powerful and compact ESP32-S3 development board designed for prototyping, wireless IoT projects, and seamless integration with Axiometa’s ecosystem. Built around the ESP32-S3-WROOM-1 module, it features dual-core performance, integrated Wi-Fi & Bluetooth Low Energy (BLE), and generous I/O access – all in a breadboard-friendly form factor.
SKU: MTA0006
5 in stock (can be backordered)
Details
What's inside?
Details

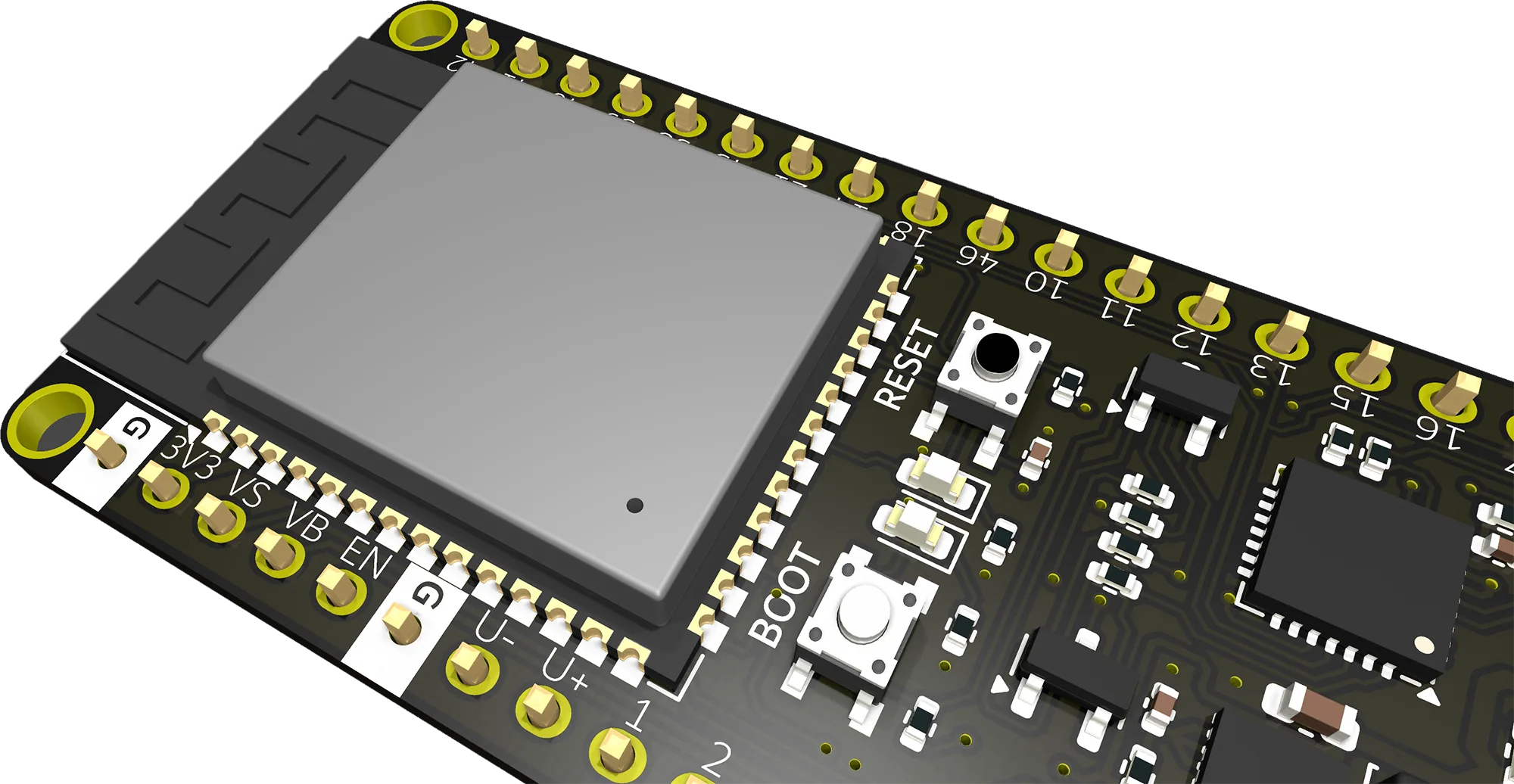

Overview
ESP32-S3-WROOM-1-N8R2, a robust dual-core microcontroller from Espressif designed for high-performance wireless applications. With native USB support, hardware-accelerated AI instructions, and deep power-saving modes, it offers the perfect balance of speed, versatility, and energy efficiency.
Xtensa® LX7 processor, up to 240 MHz
2MB PSRAM
Wi-Fi 4 (802.11 b/g/n)
Bluetooth 5 (LE)
I2C, SPI, UART, PWM, ADC
AI and ML acceleration
USB-Serial
8MB Flash


Features
The Axiometa Core WiFi offers flexible and extensive connectivity through the ESP32-S3’s versatile peripheral set.
20 ADC channels
44 IOs
USB-OTG
USB-UART
Battery Compatible Buck-Boost Power

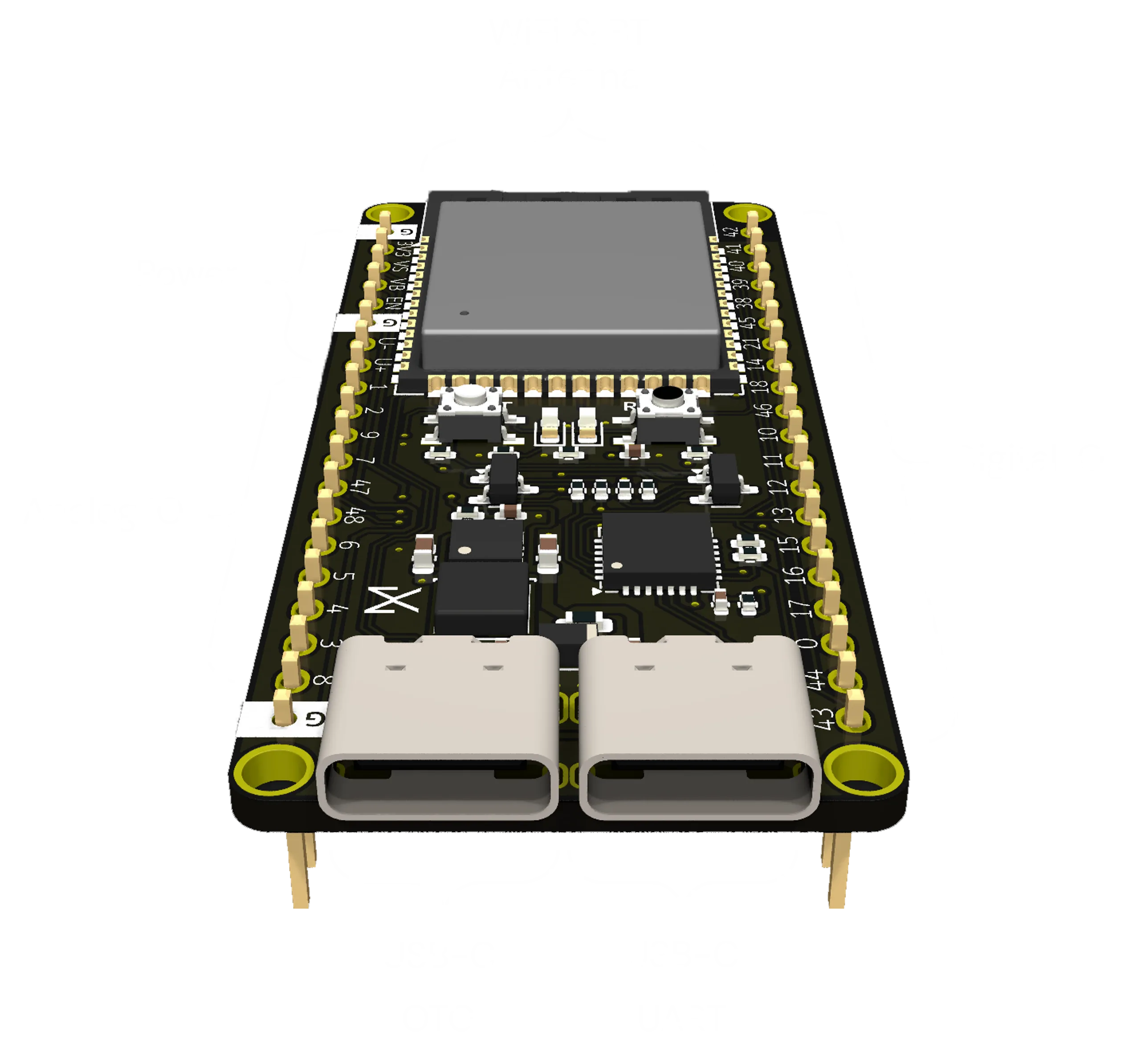

Interface
Fully supported by a modern software stack and designed to make development frictionless.
Arduino IDE
ESP-IDF
MicroPython
CircuitPython
TinyML
Toit
Matter

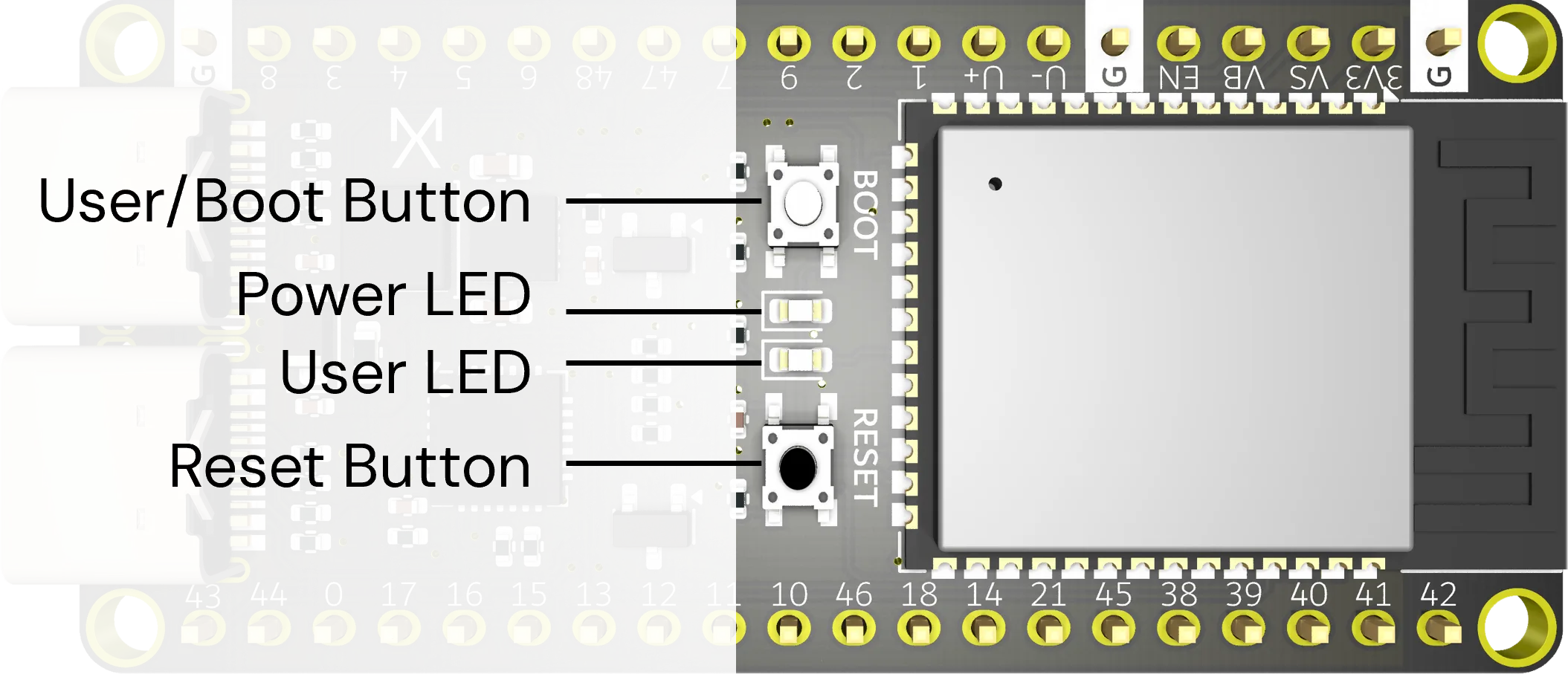

User Button
Reset Button
Activity LED
Power LED


Documentation

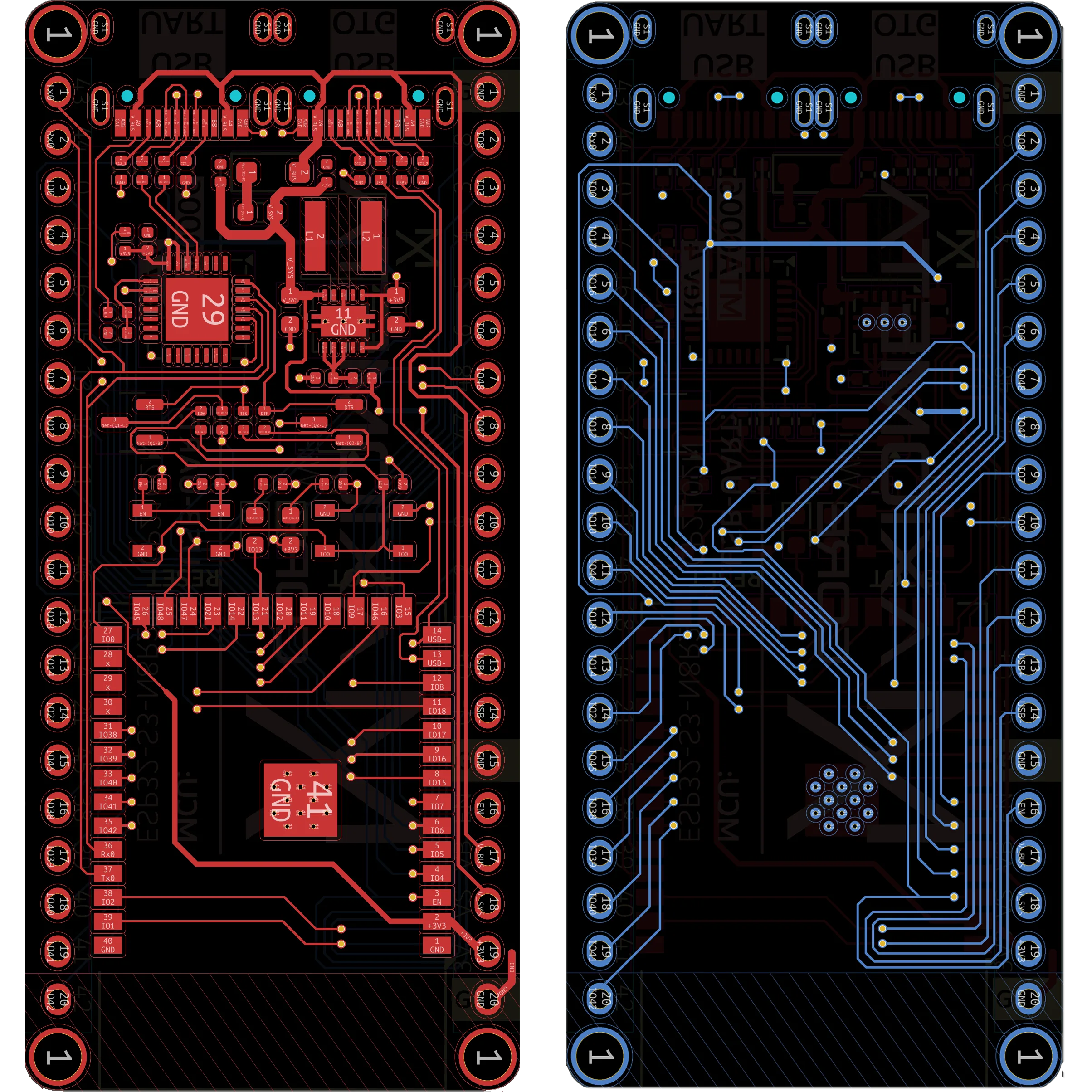

This part is fully open sourced with schematics and 3D files available bellow
Read Full Guide
