Axiometa SPARK
€19.99 ex. VAT
Axiometa Spark is a modern take on the classic Arduino Uno R3, upgraded for today’s makers and educators. It keeps the familiar form factor but adds thoughtful features to streamline prototyping and classroom use. Spark is fully compatible with the Arduino ecosystem and plugs directly into the Axiometa Matrix platform, making it a solid, feature-rich base for modular electronics. USB-C, Onboard power switch 5 status LEDs, Built-in light sensor (LDR), Stemma QT port for easy I2C expansion, Double headers for stacking and easier jumper access.
SKU: MTA0002
15 in stock (can be backordered)
Details
What's inside?
Details
Overview

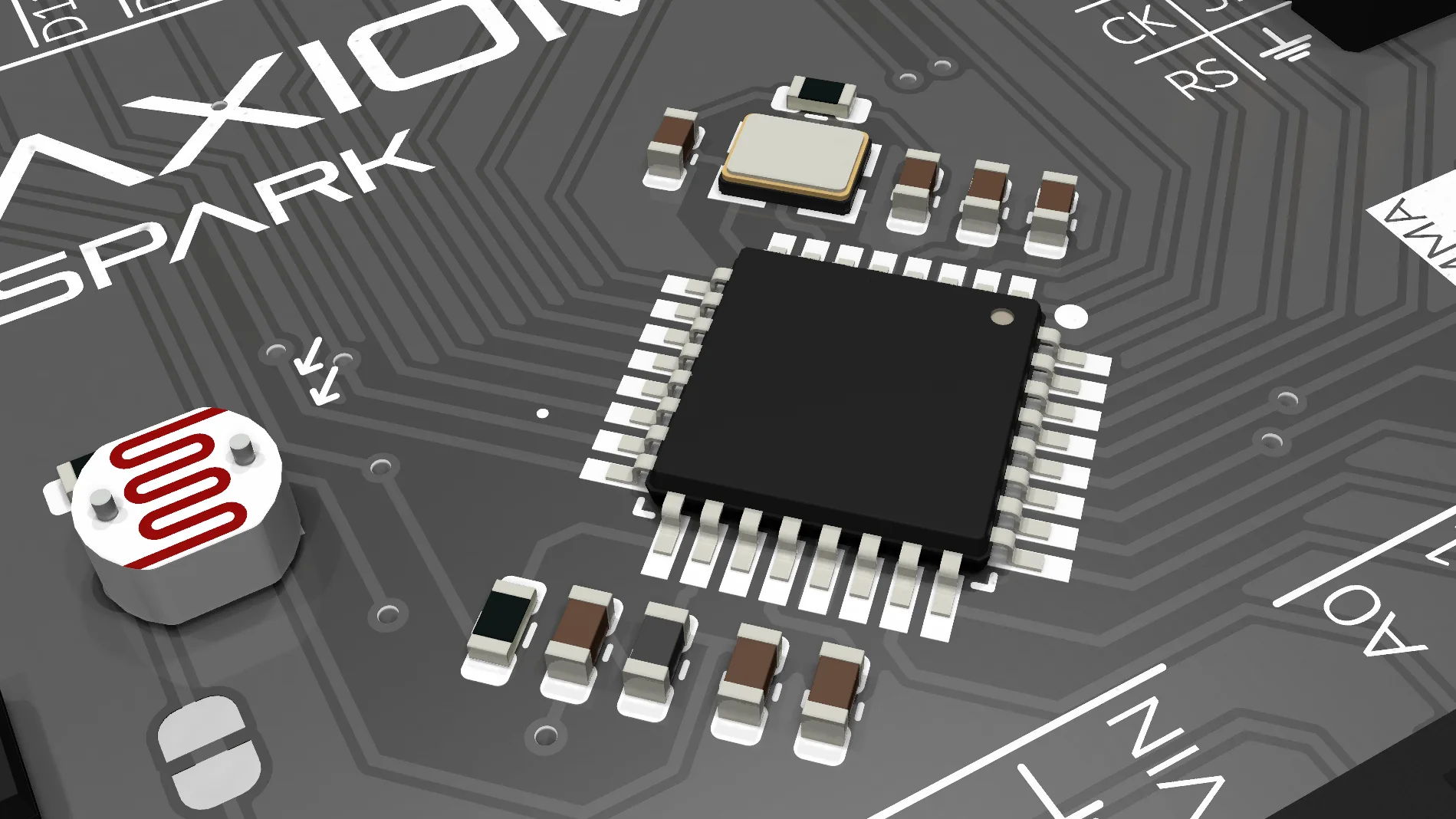

At its core, the Axiometa Spark is built around the classic ATmega328P microcontroller — the same chip used in the original Arduino Uno R3. This makes it fully compatible with existing Arduino code, libraries, and examples, while adding modern improvements to the board itself.
8-bit AVR @ 16 MHz
32 KB Flash
I²C, SPI, UART
2 KB SRAM
1 KB EEPROM
Atmega 328P 16 MHz
5 ADCs
14 Digital GPIOs
5V GPIO Voltage

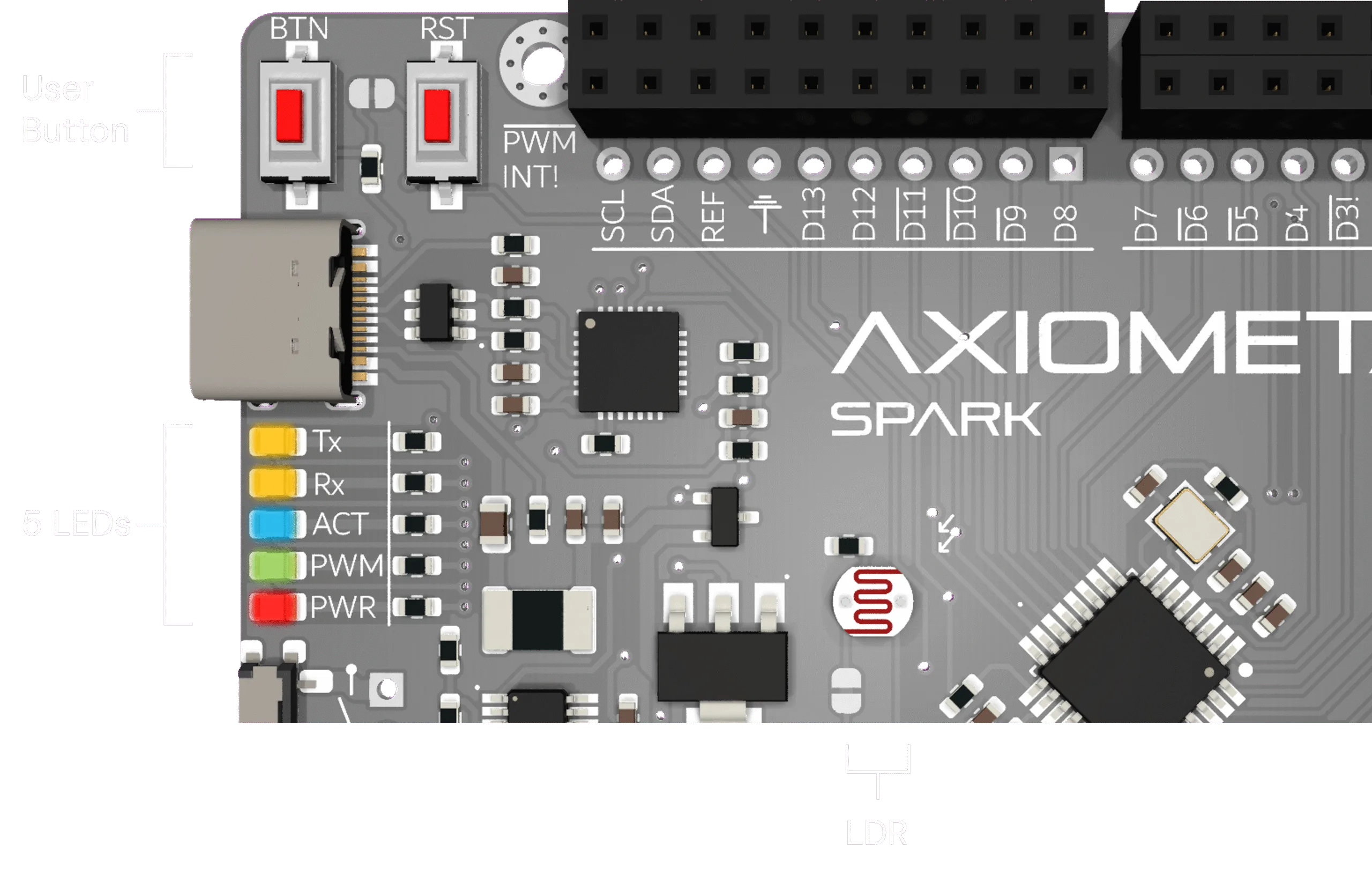

Peripherals
The Axiometa Core ATmega328P offers classic Arduino-style interfaces and familiar GPIO layout, making it easy to get started.
1x User Button
Light Sensor
5 LEDs

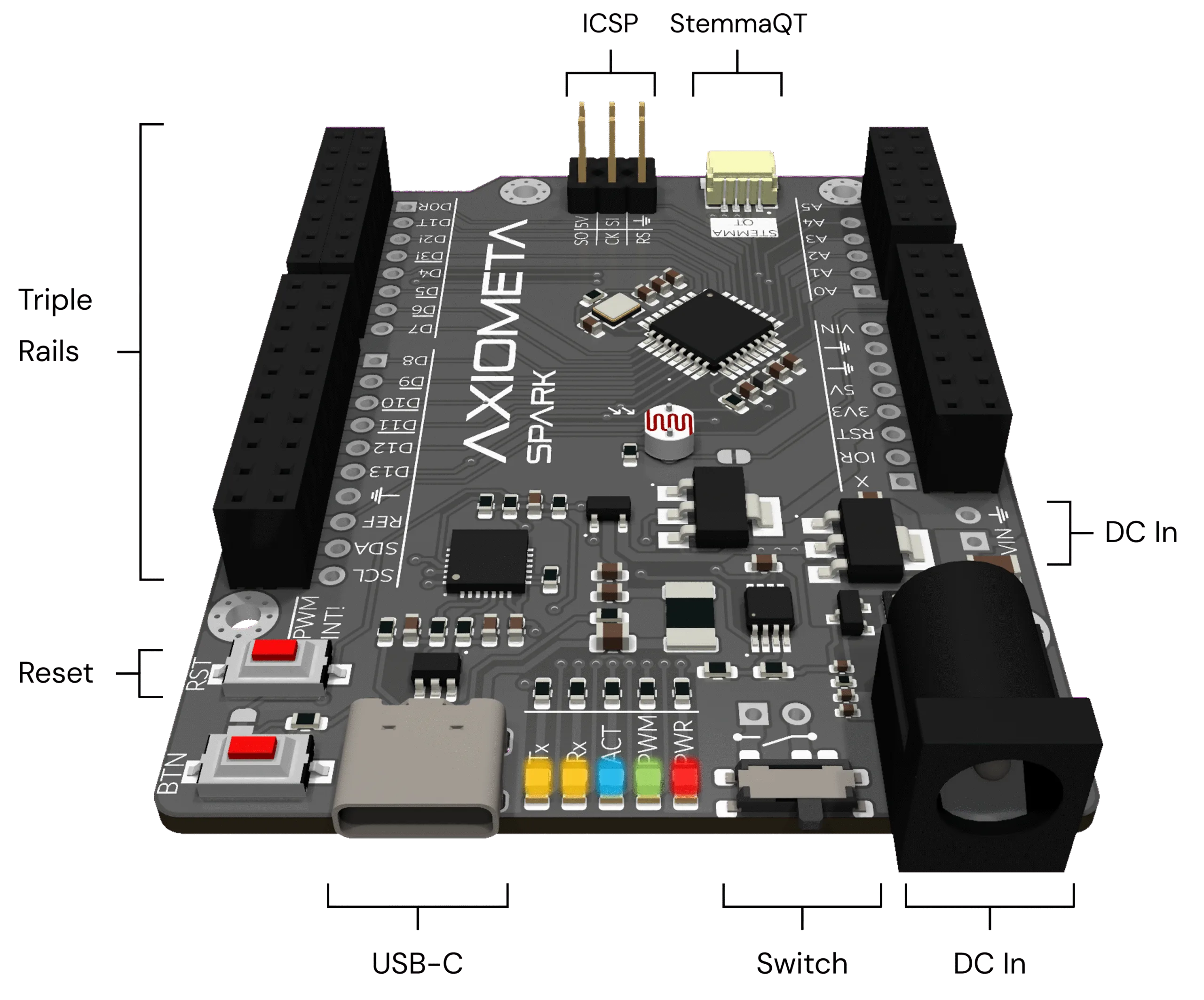

Interface

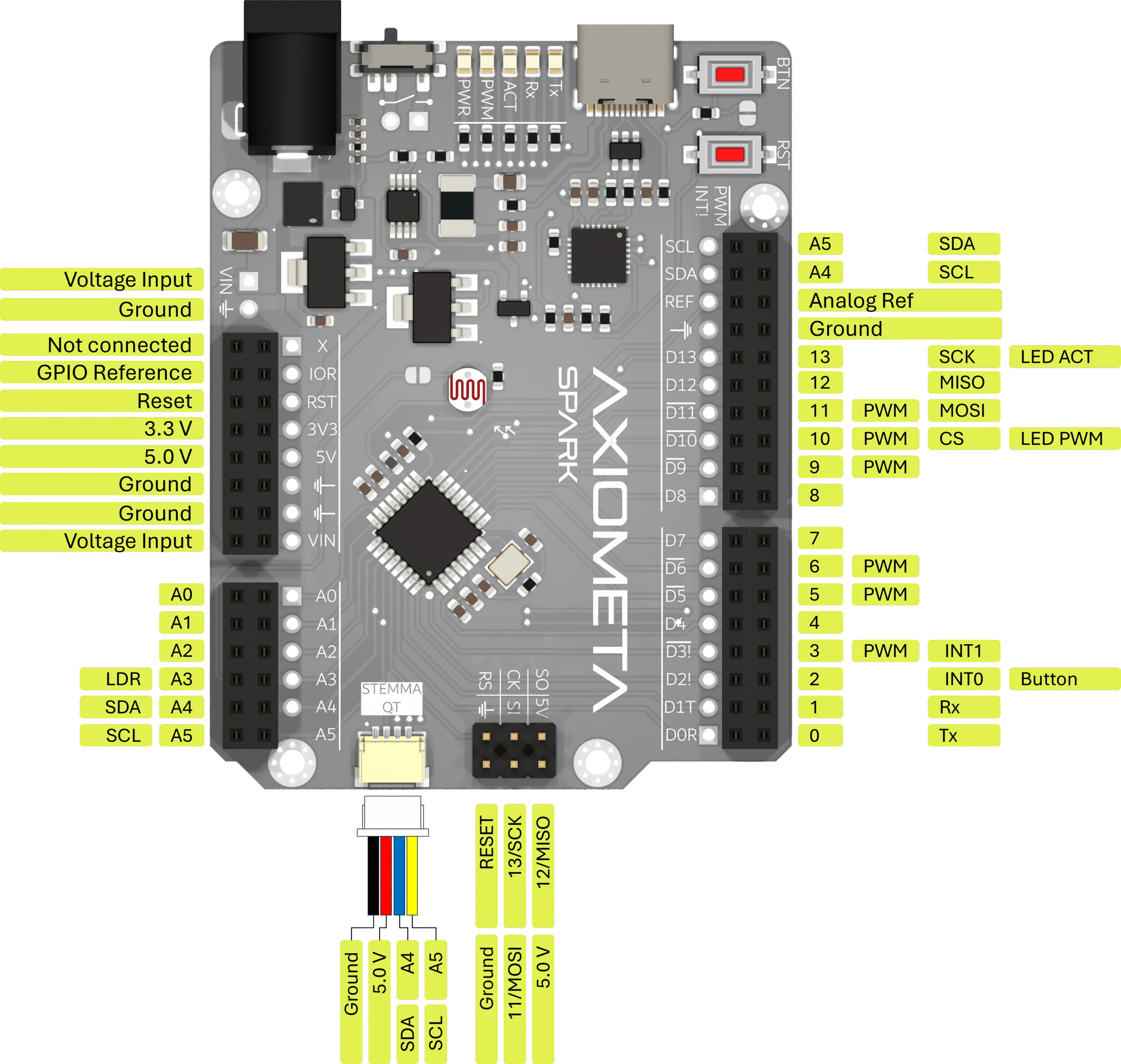

Axiometa Spark offers a clean, accessible layout designed to simplify prototyping and expansion. Alongside the familiar Arduino Uno R3 pinout, it features:
ICSP Header
Stemma QT Port
Triple Rails
USB-C
Power Switch
DC Input
Reset Switch

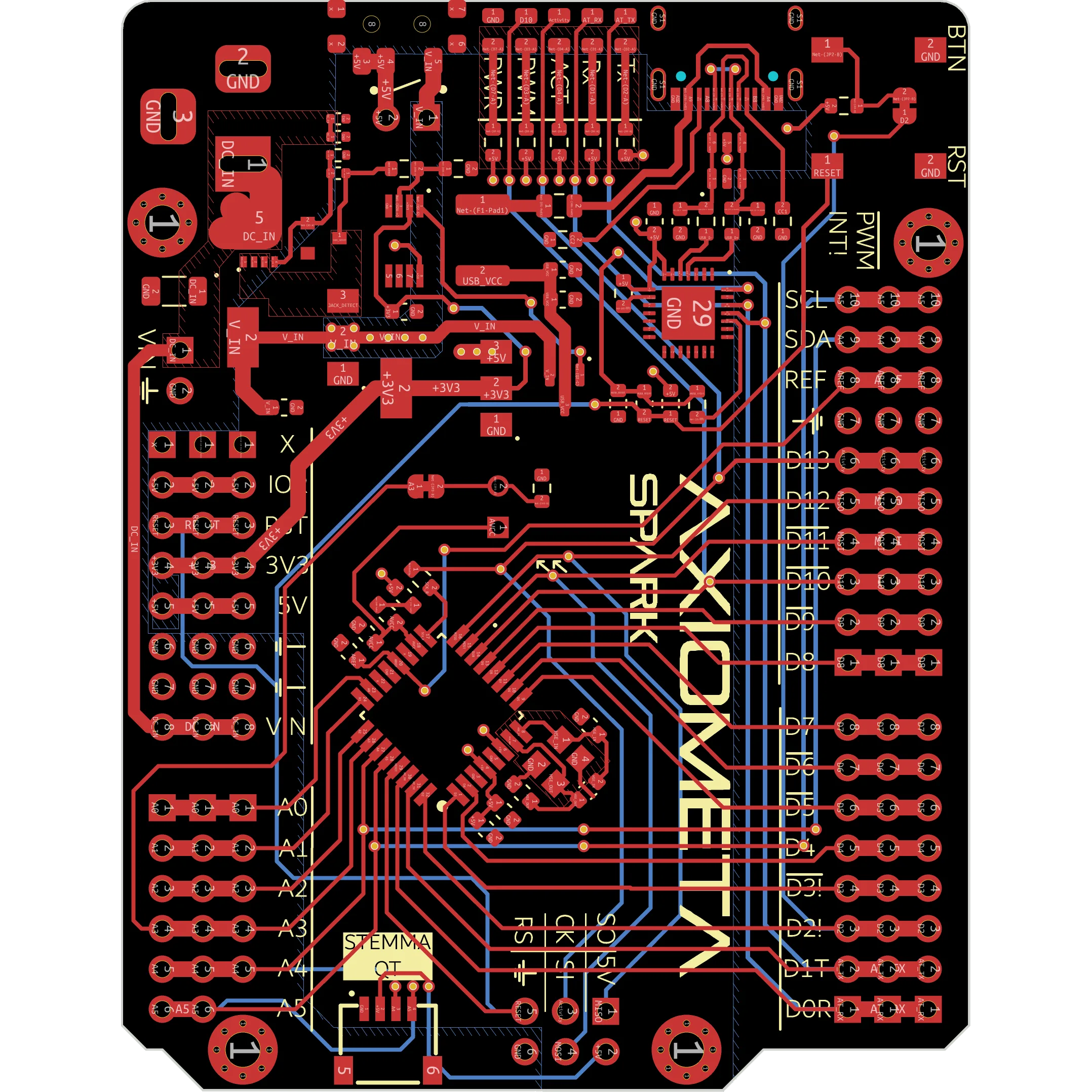

Documentation
This part is fully open sourced with schematics and 3D files available bellow
CERN-OHL-S-2.0
×
