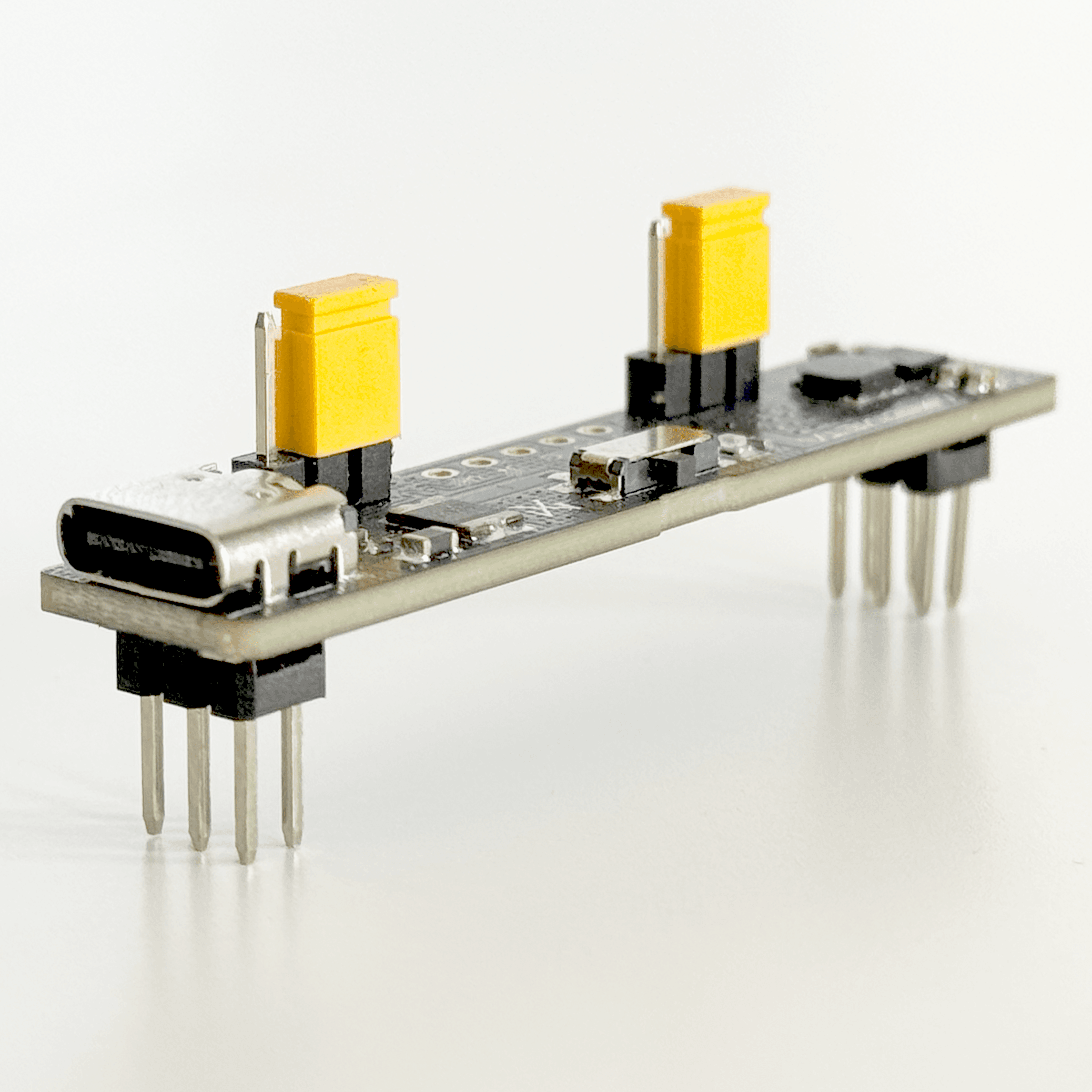

BrødBoost-C: Breadboard Power Supply
SKU: PRH0001
Details
What's inside?
Details
Overview
This USB Type-C breadboard power supply negotiates 5V from compatible USB-PD power supplies and uses an on-board DC-DC converter to provide optional 3.3 V power.

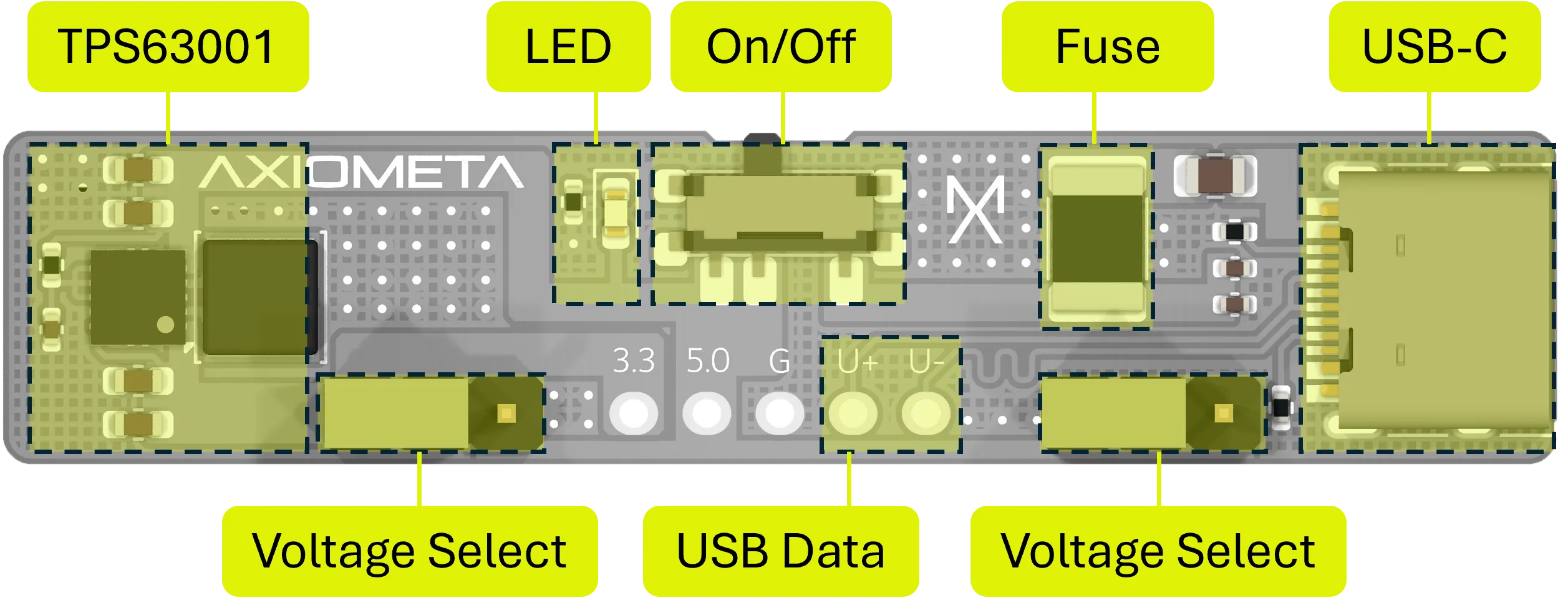

USB-C
5V, 3.3V
Power LED
Power Switch


Compatibility

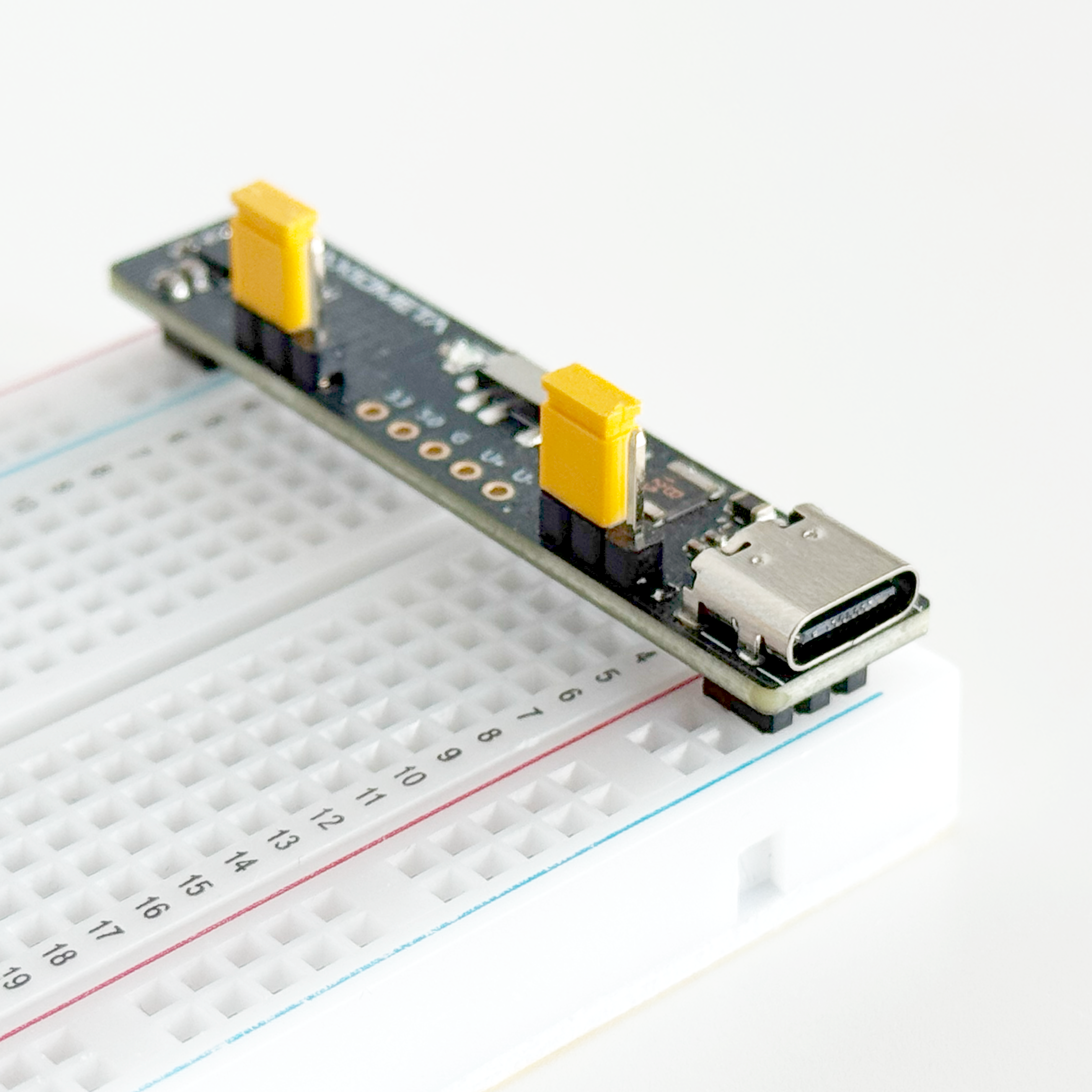

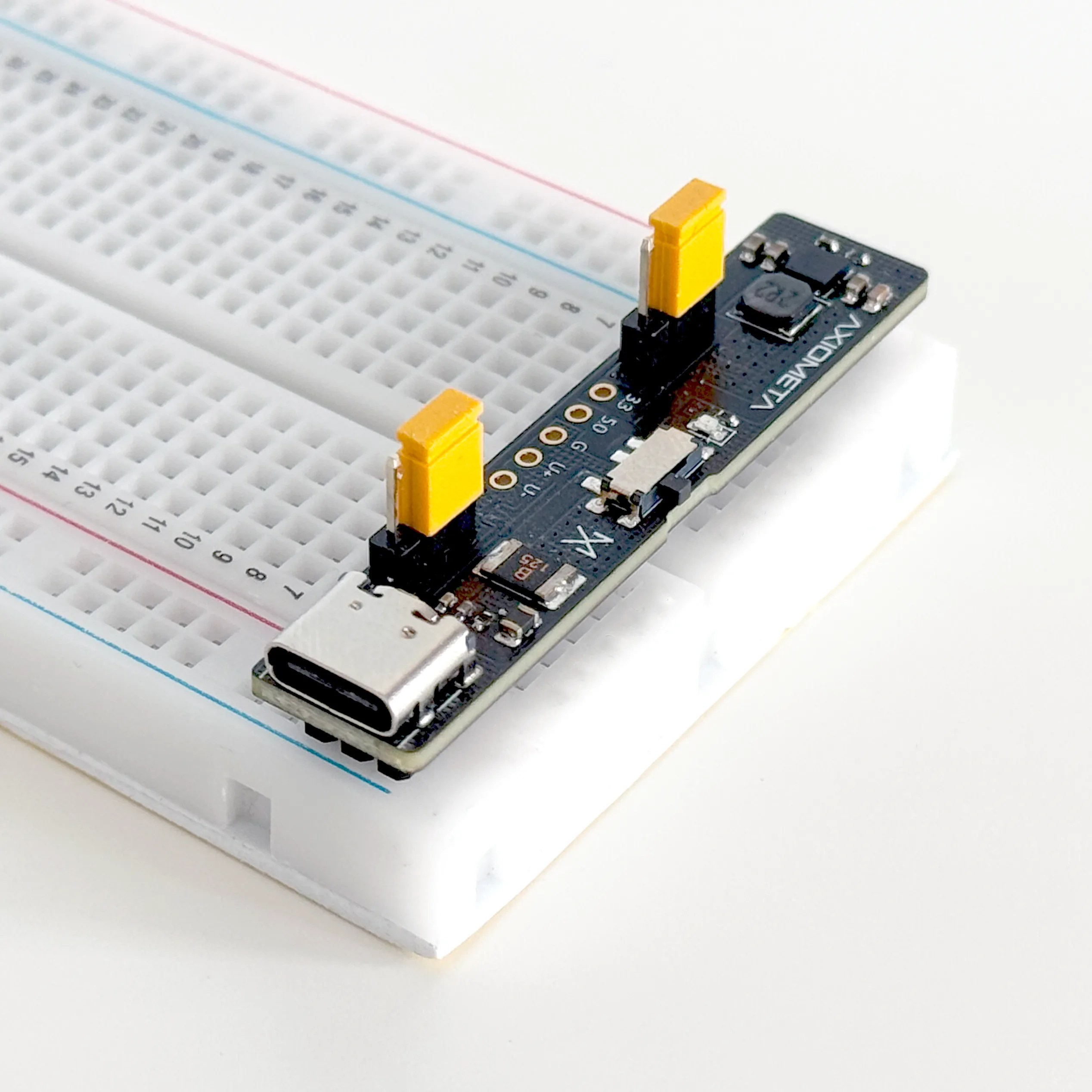

Works with most solderless breadboards (tested with BB400 & BB800).
Compatible with chargers, power banks, and desktop hubs.

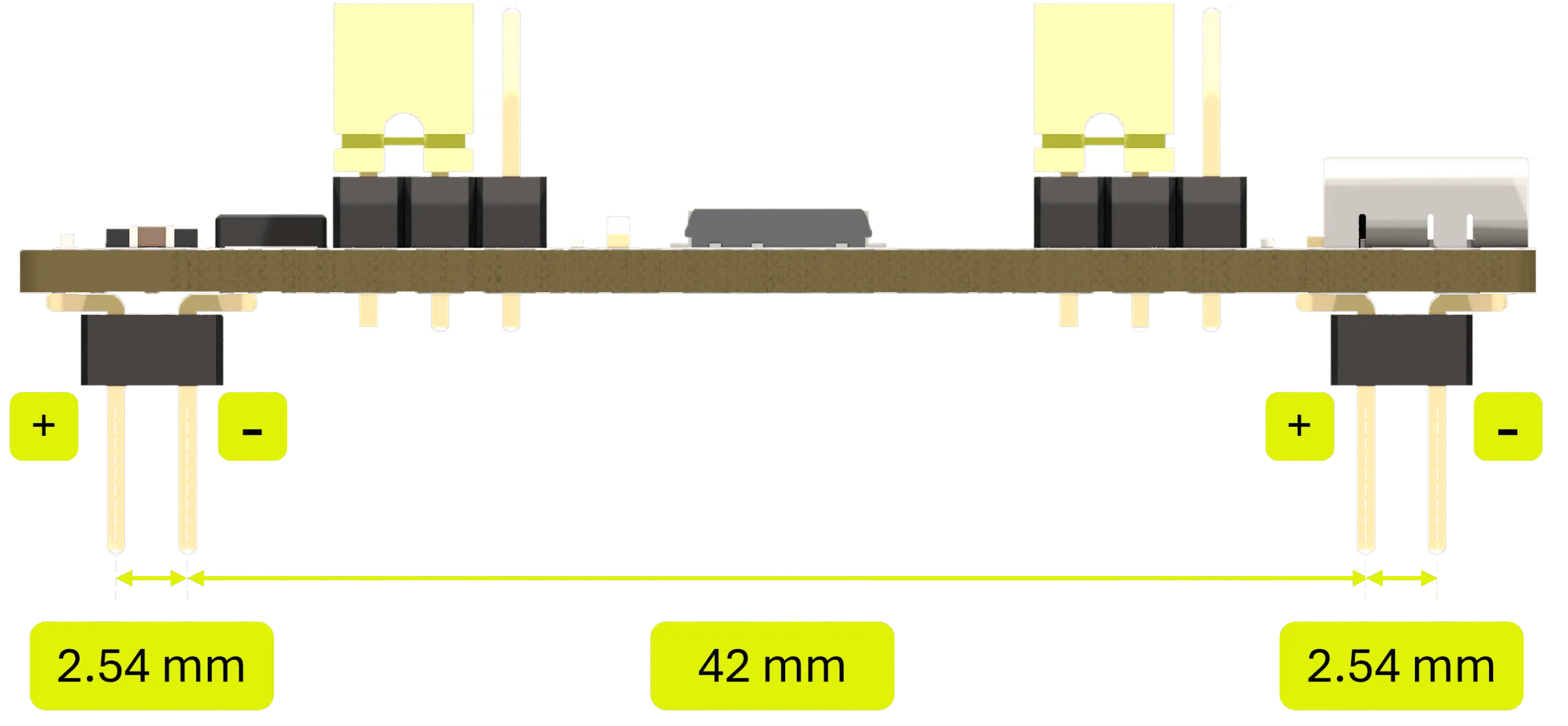

Header Gap: 42mm
Header Pitch: 2.54 mm
Interface

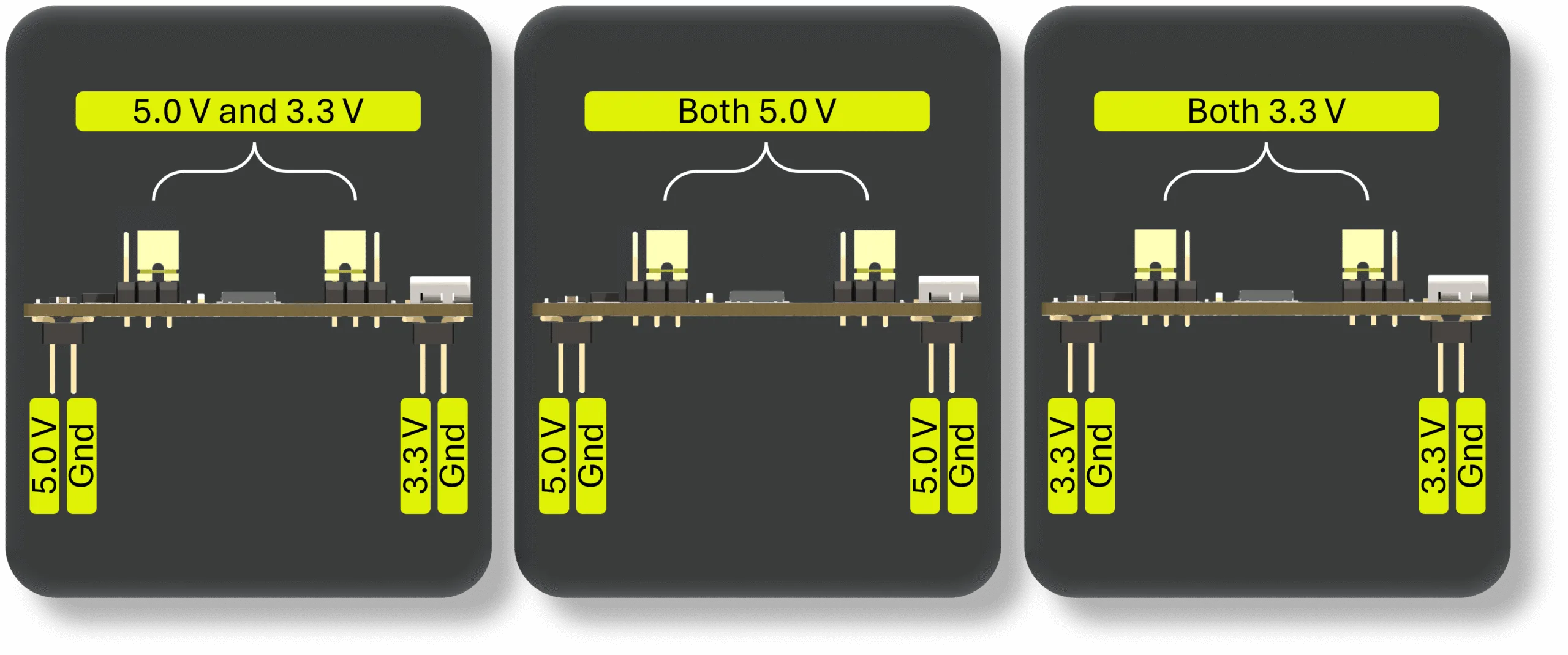

Each rail can be controlled individually. The voltages can be selected using jumper caps in a fashion shown bellow.


Documentation
This part is fully open sourced with schematics and 3D files available bellow
CERN-OHL-S-2.0
How it works ?

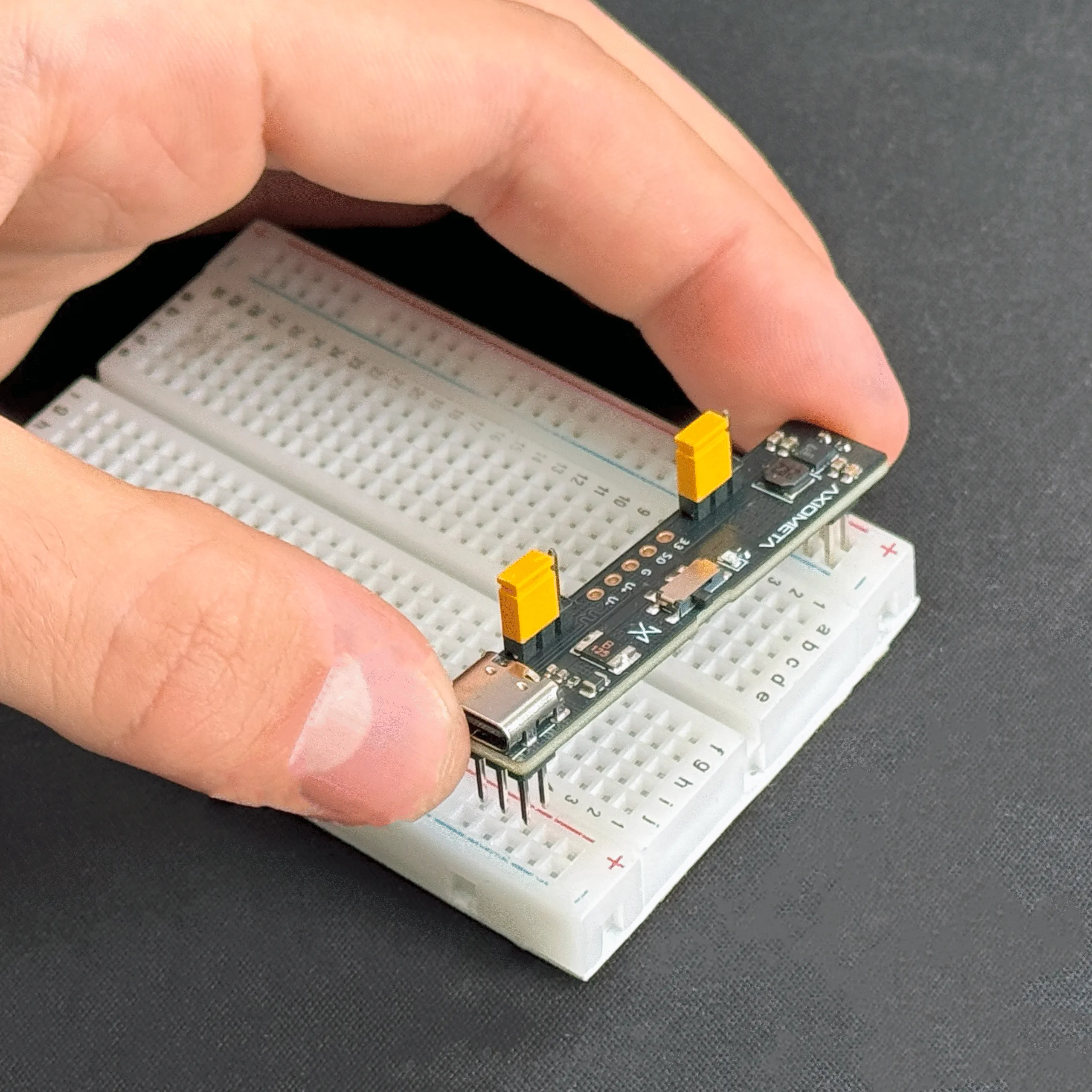

INSERT

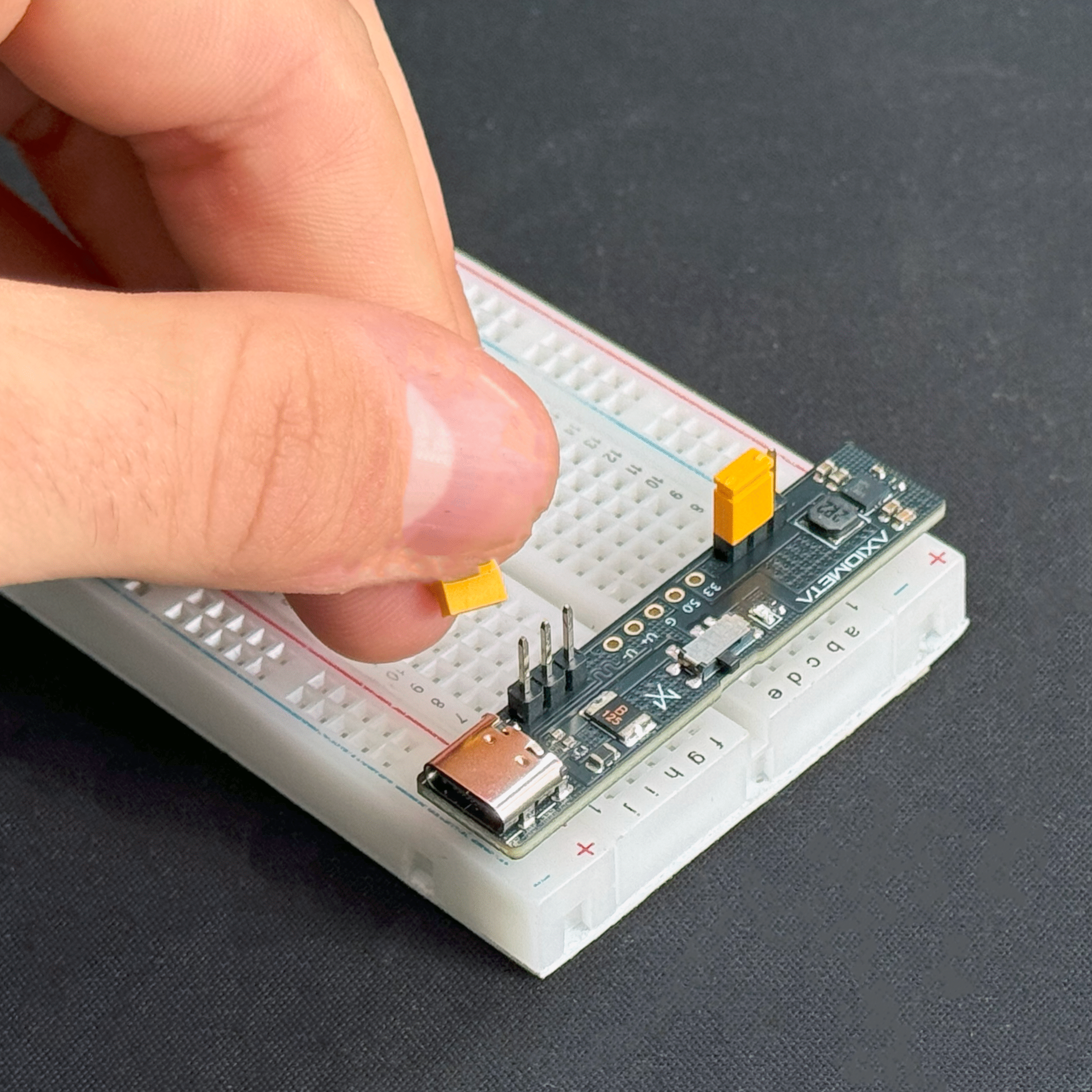

SELECT

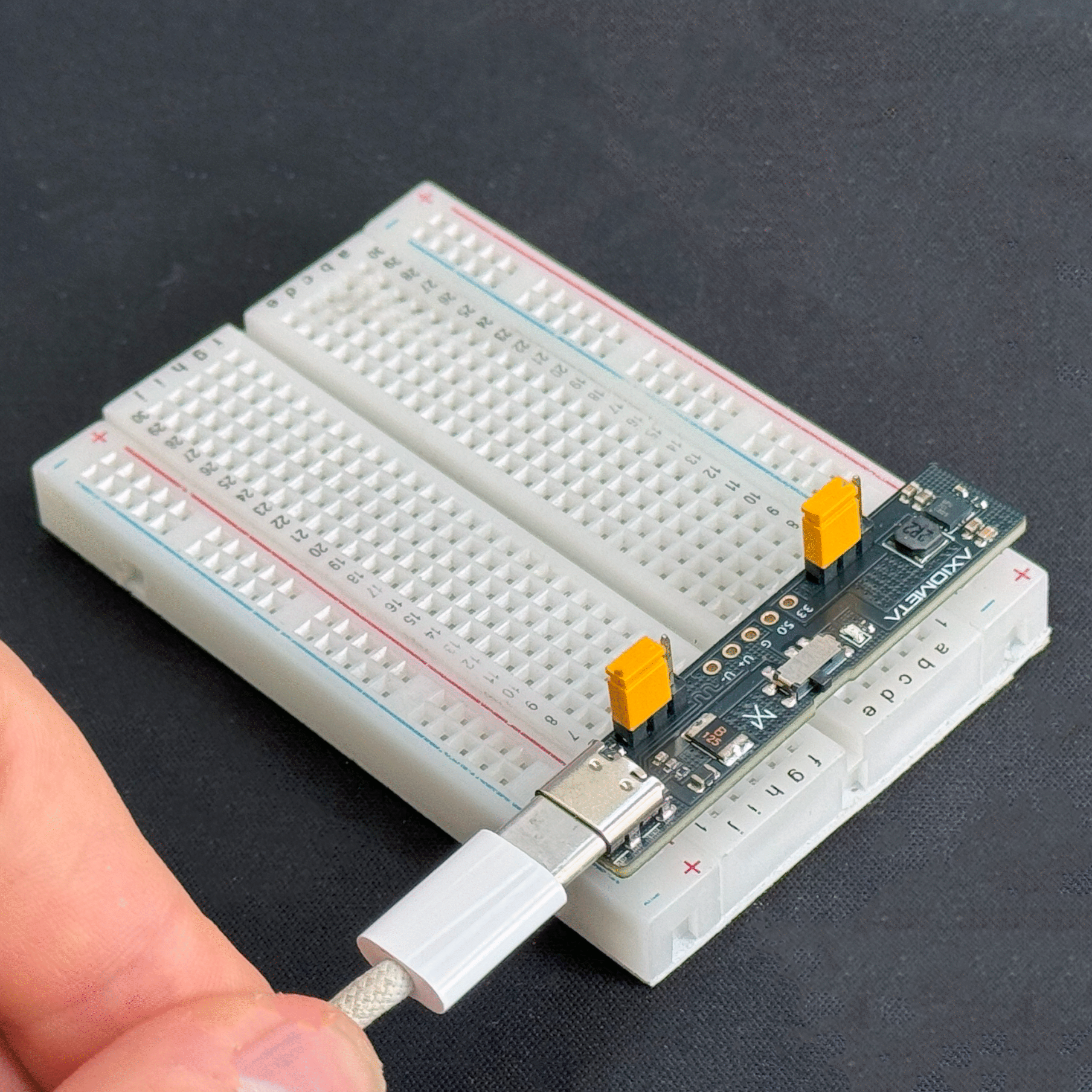

PLUG IN

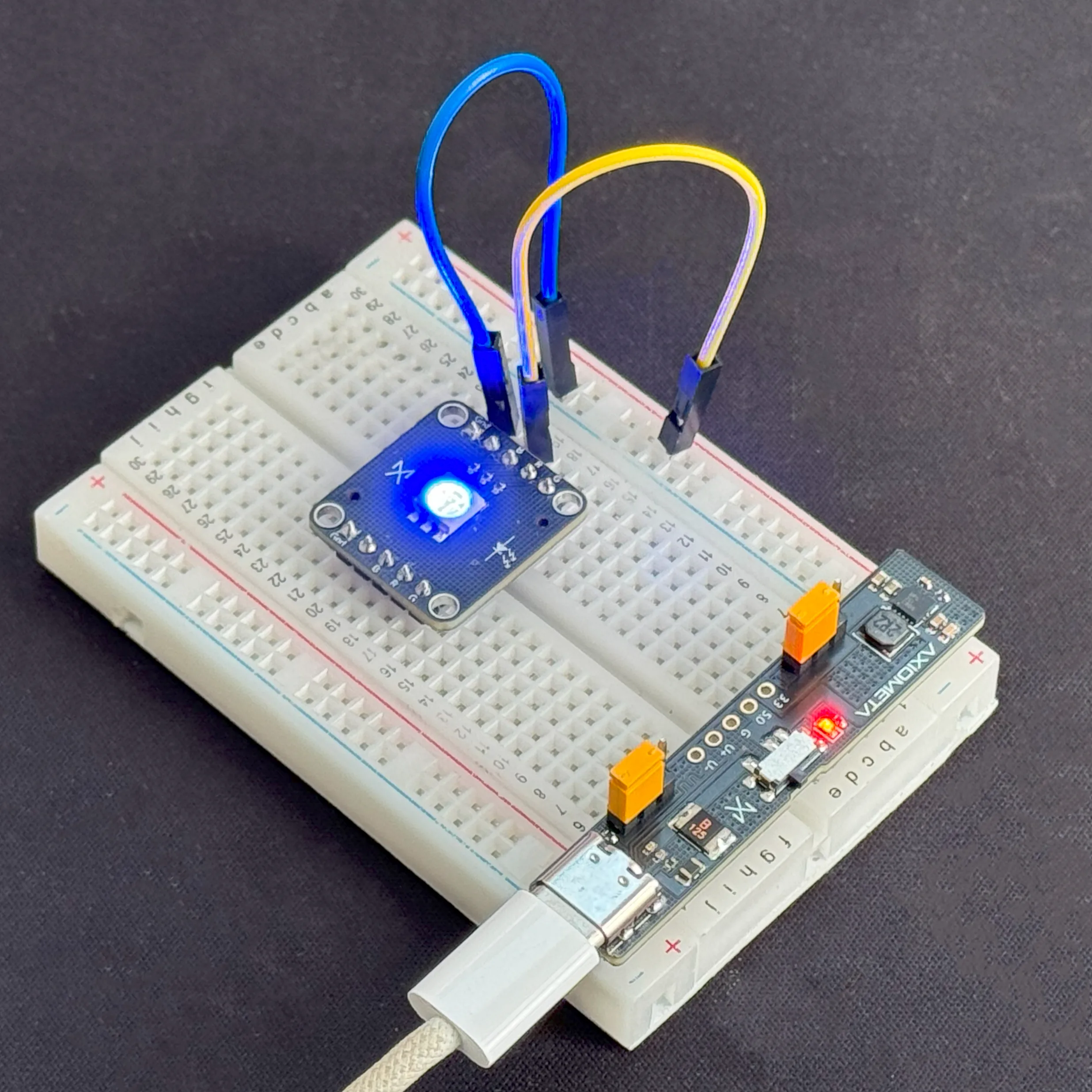

CREATE
×

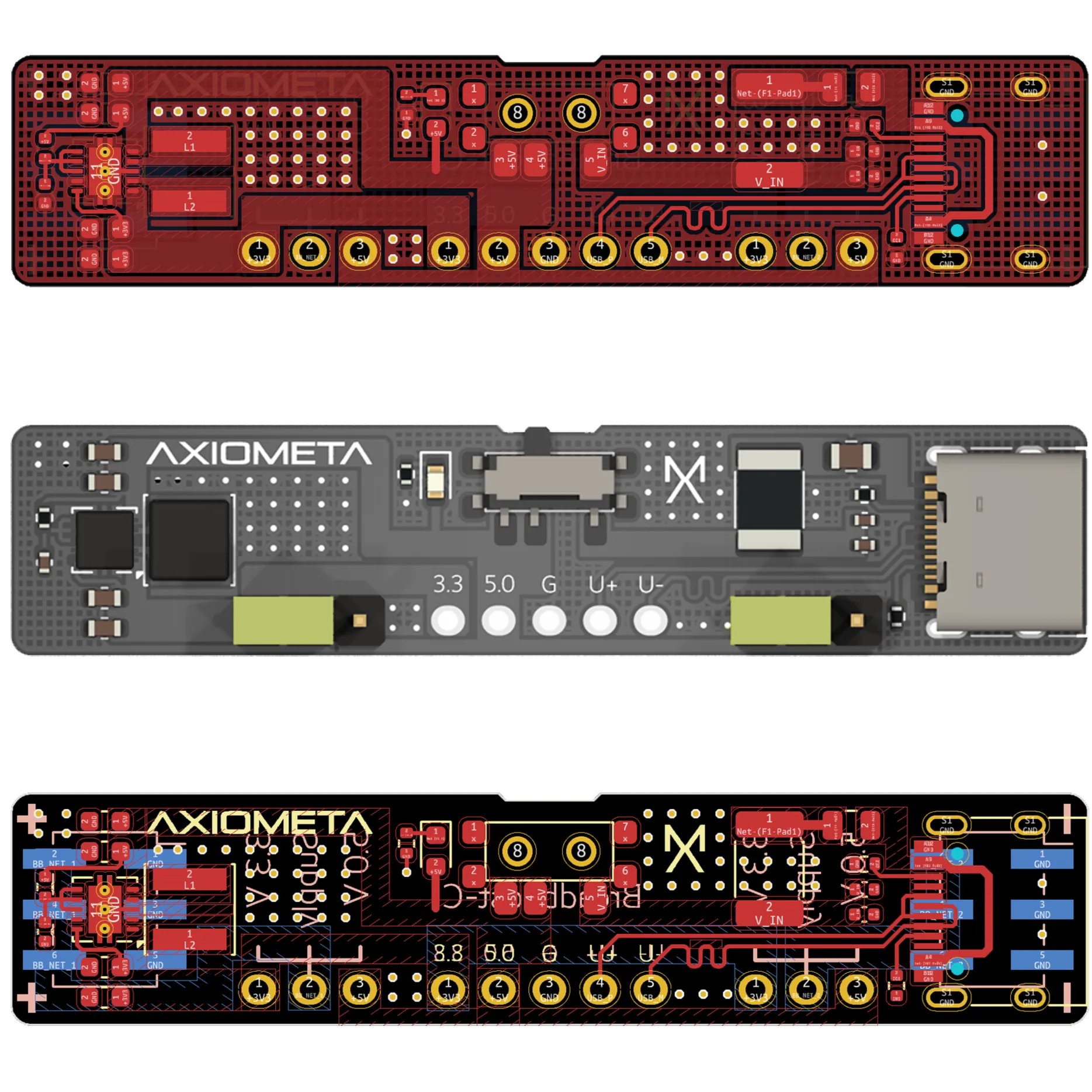

What's inside?
